End Dump HD Truck Unloader

End Dump HD Truck Unloader

Regular price $57,600.00 Sale

Price Starts at $57,600.00

Call or email for custom quote and availability.  814-701-2111

sales@ironcitysupply.com

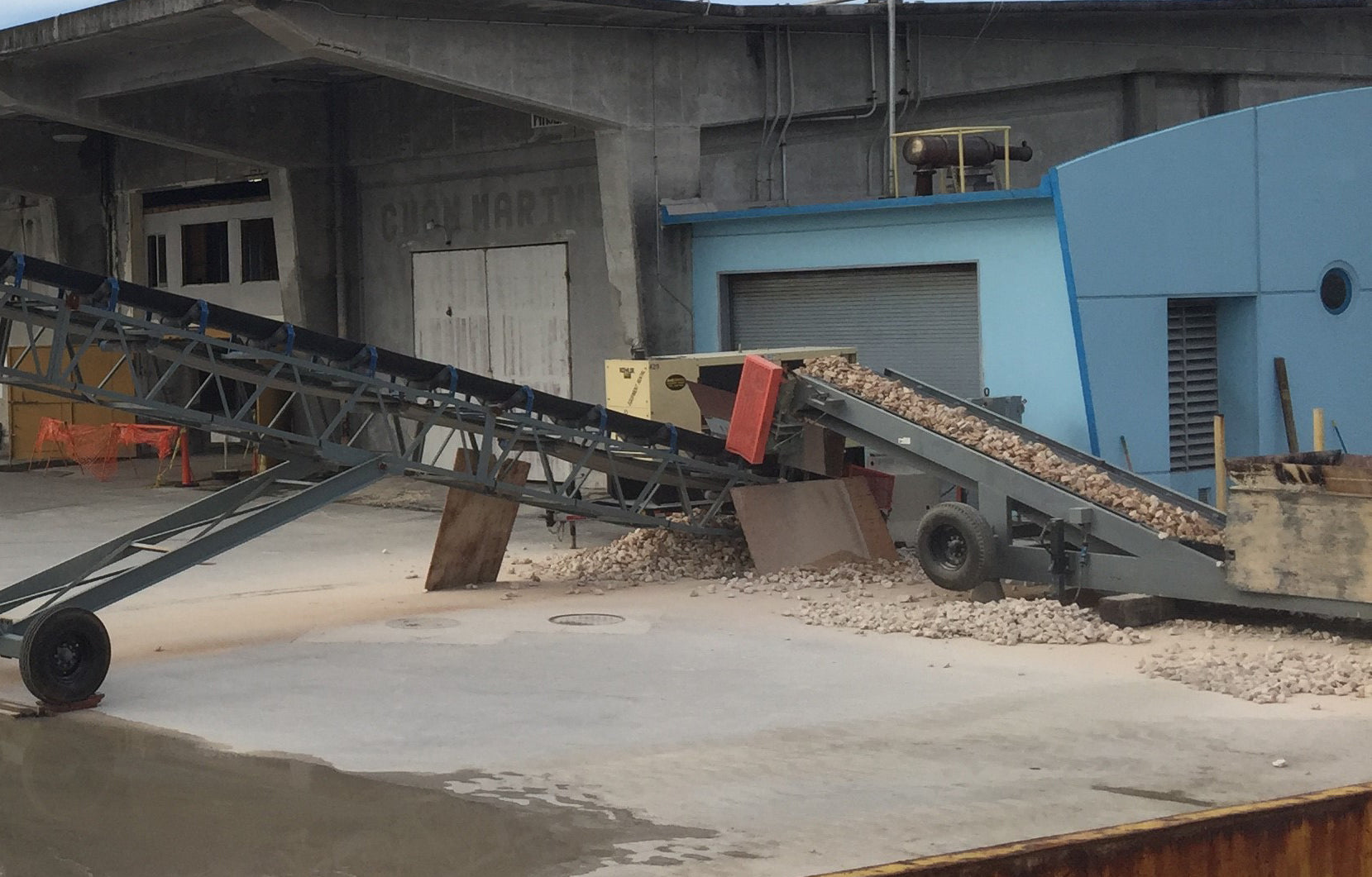

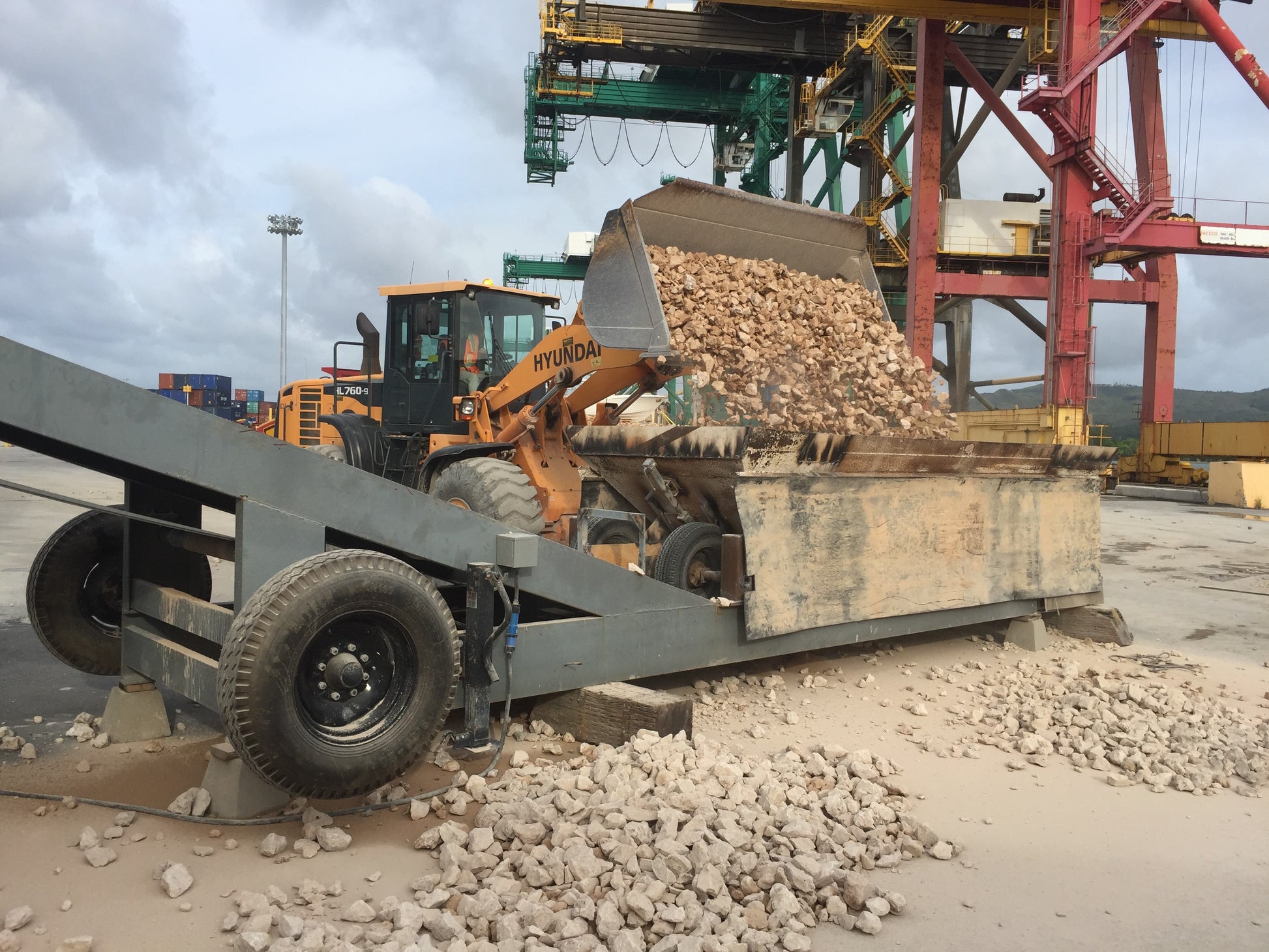

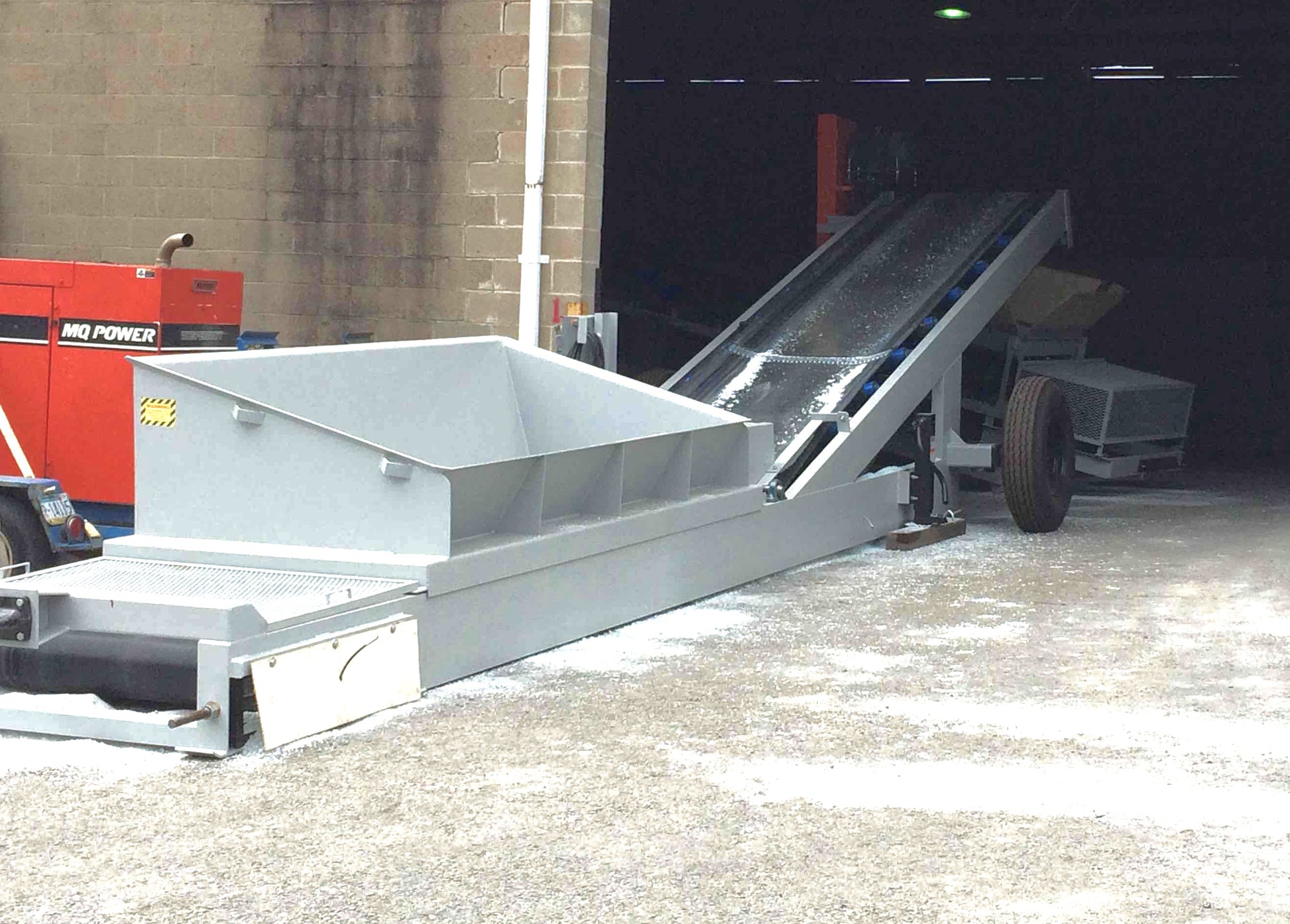

Unload 25 ton dump trucks in as little as a minute with our HD End Dump Truck Unloader.  Everything on this unit is customizable, but standard units as shown are usually in stock.

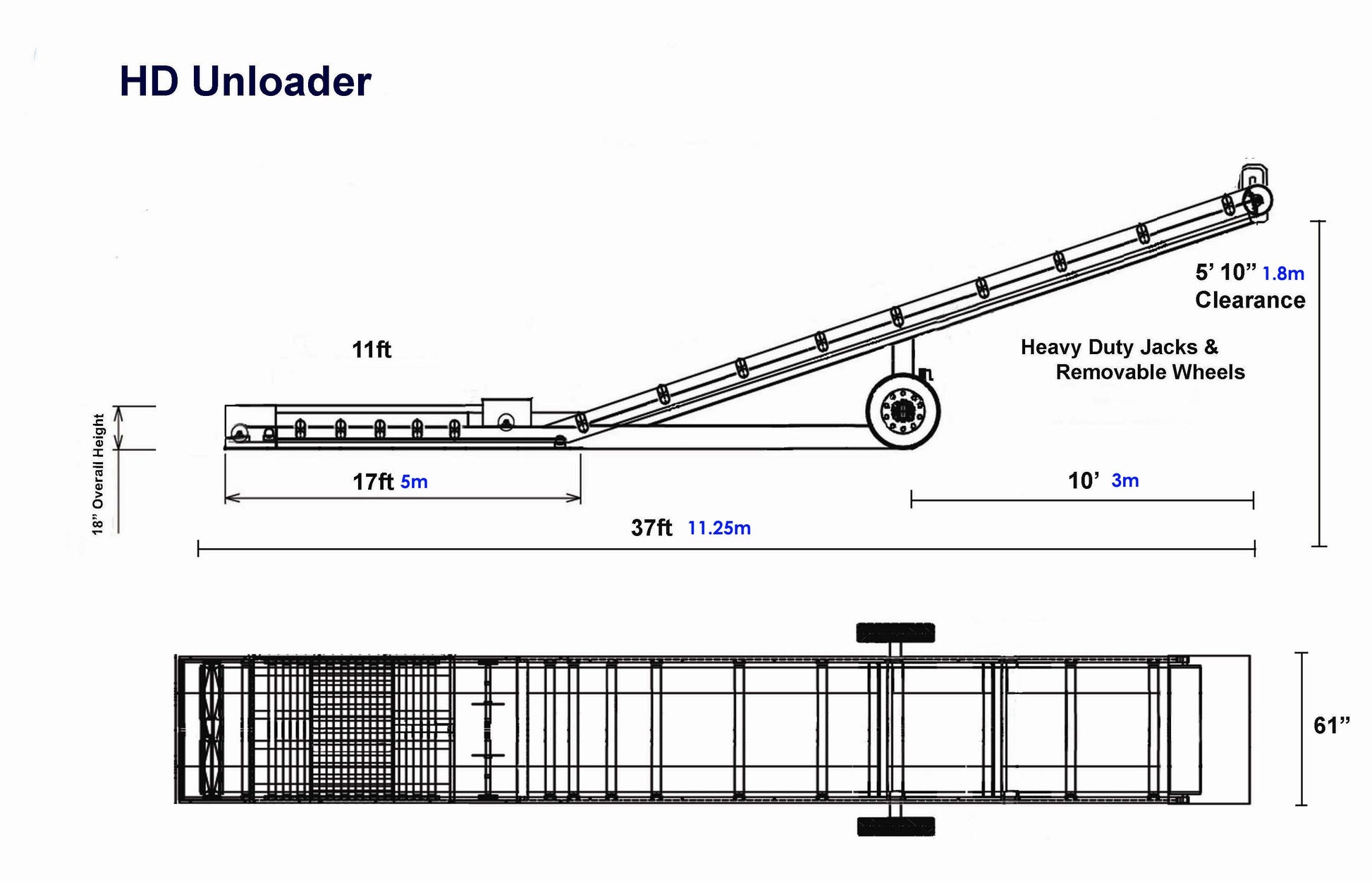

48” HD End Dump Unloader:  1500 tph @ 100 pcf on 48" Belt

  • 15” Channel Frame
  • World Wide 30hp TEFC 3 phase 230/460v motor
  • World Wide #6-25 Reducer
  • 16” Lagged Head Pulley, Shaft & Roller Bearings
  • 7” Winged Tail Pulley w/Screw Take-ups
  • 4” x 20 degree Top Rollers on 12” Centers at receiving area, 48” Centers on incline
  • 48” 3 ply 330 PIW belt

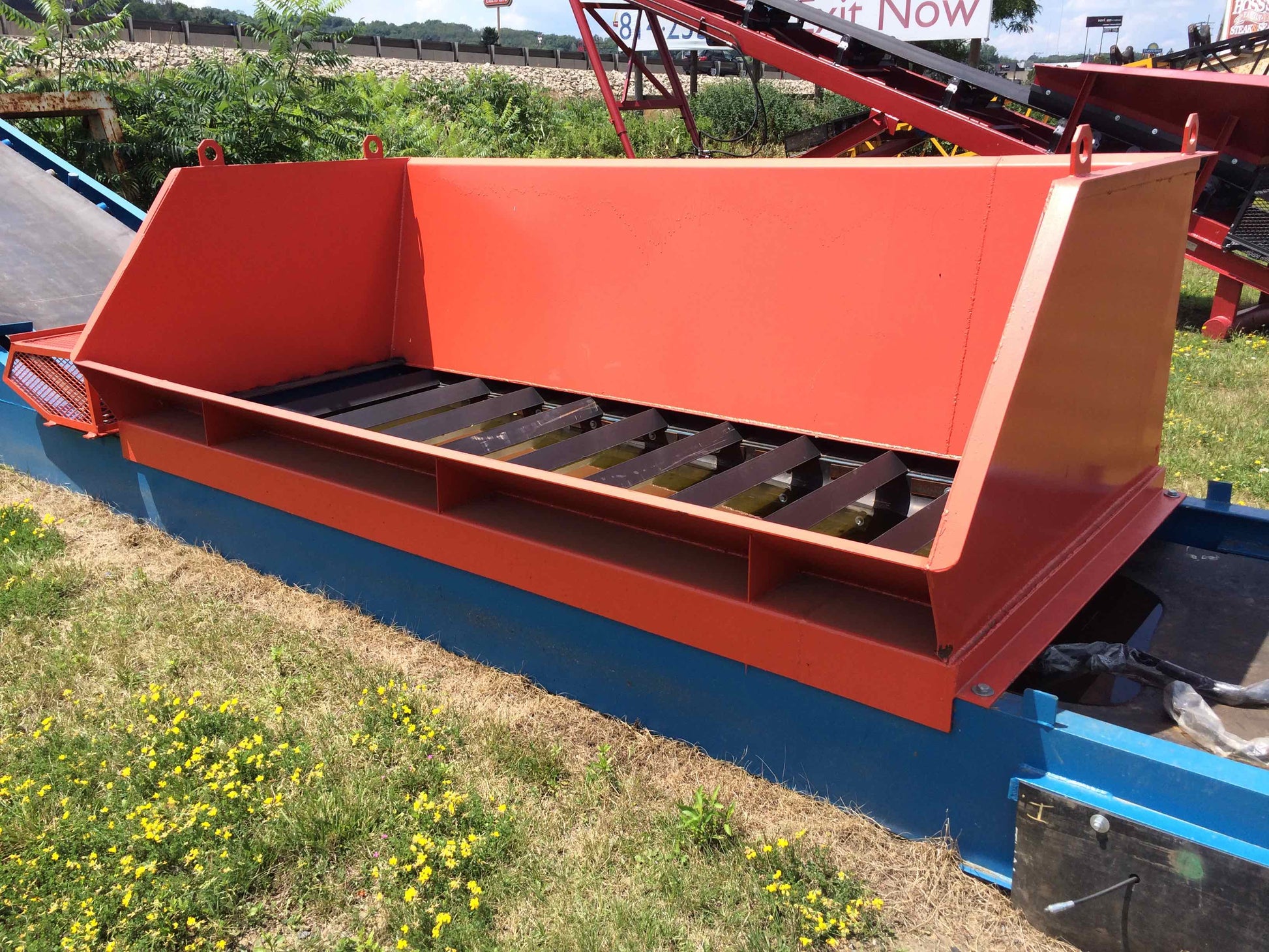

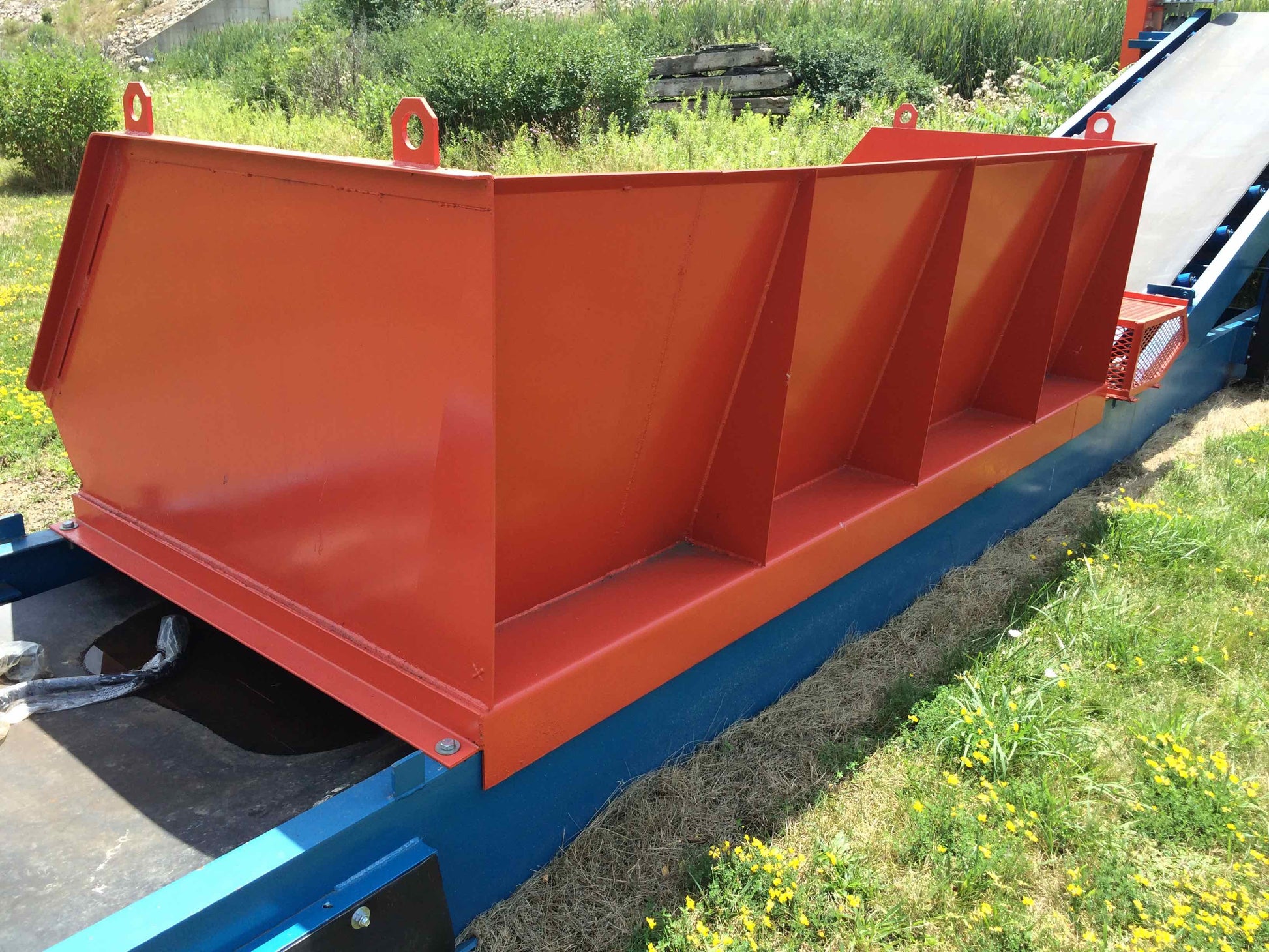

  • 11’ Hopper

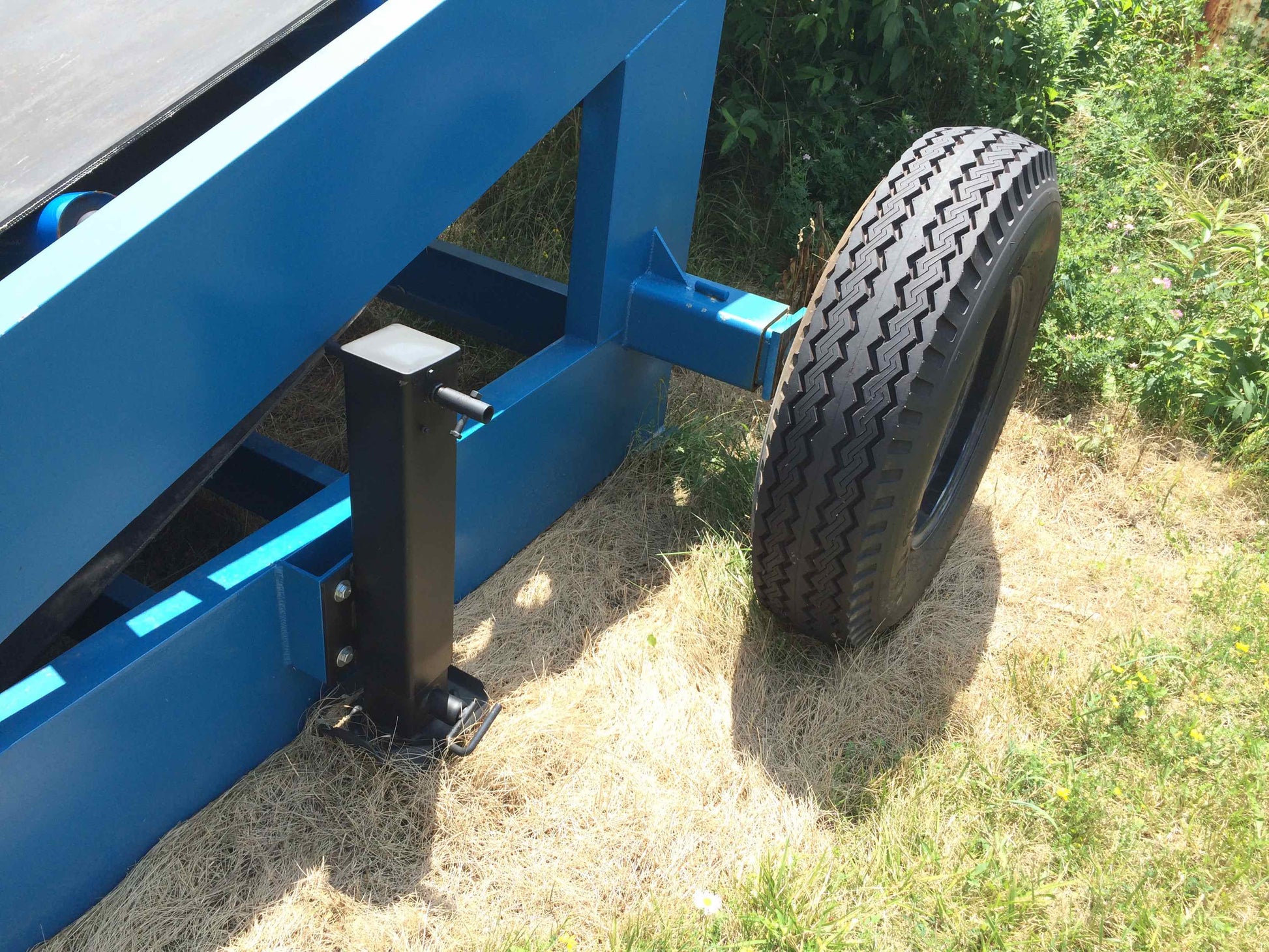

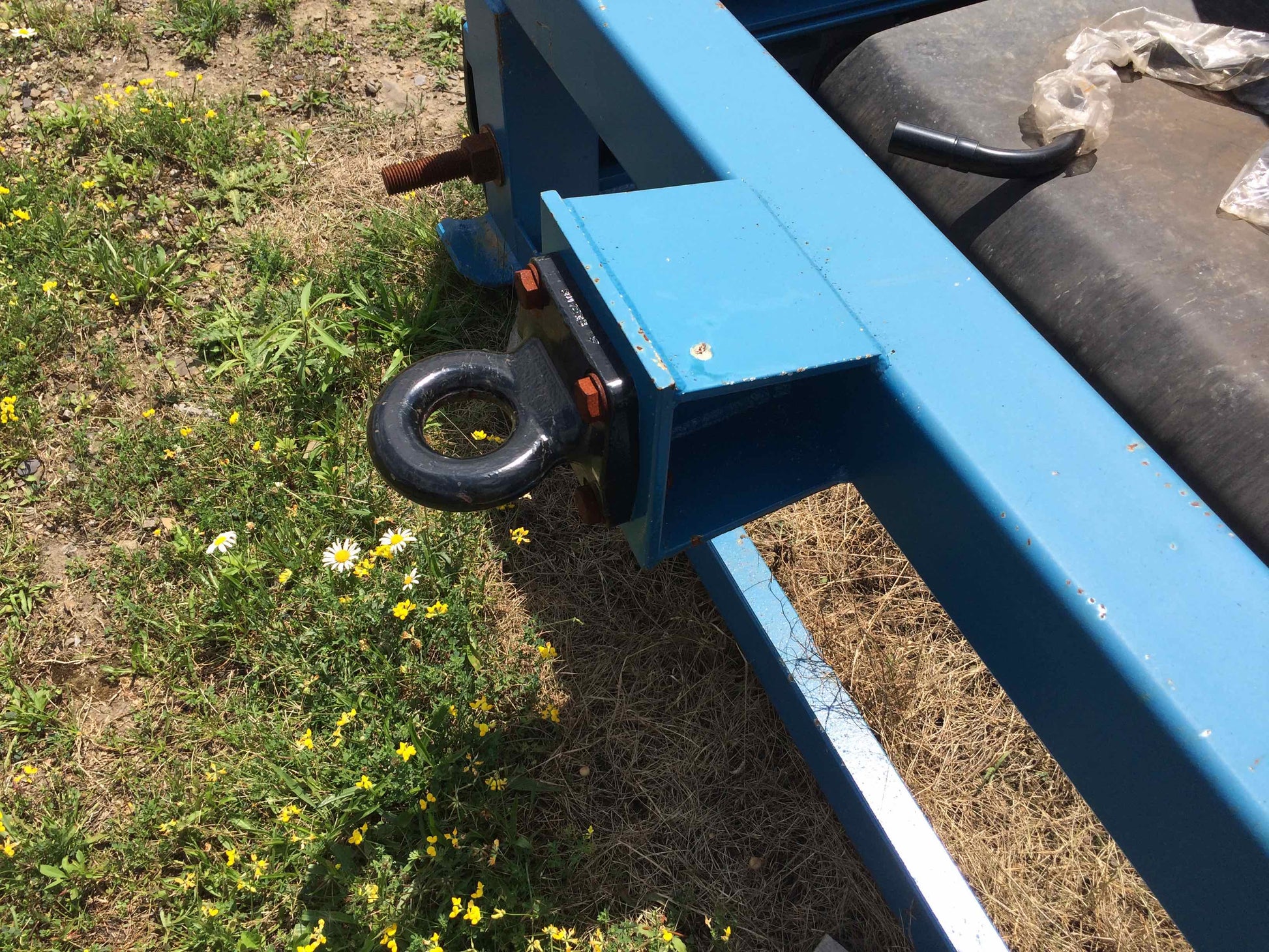

  • Pintle Eye Tow Hook

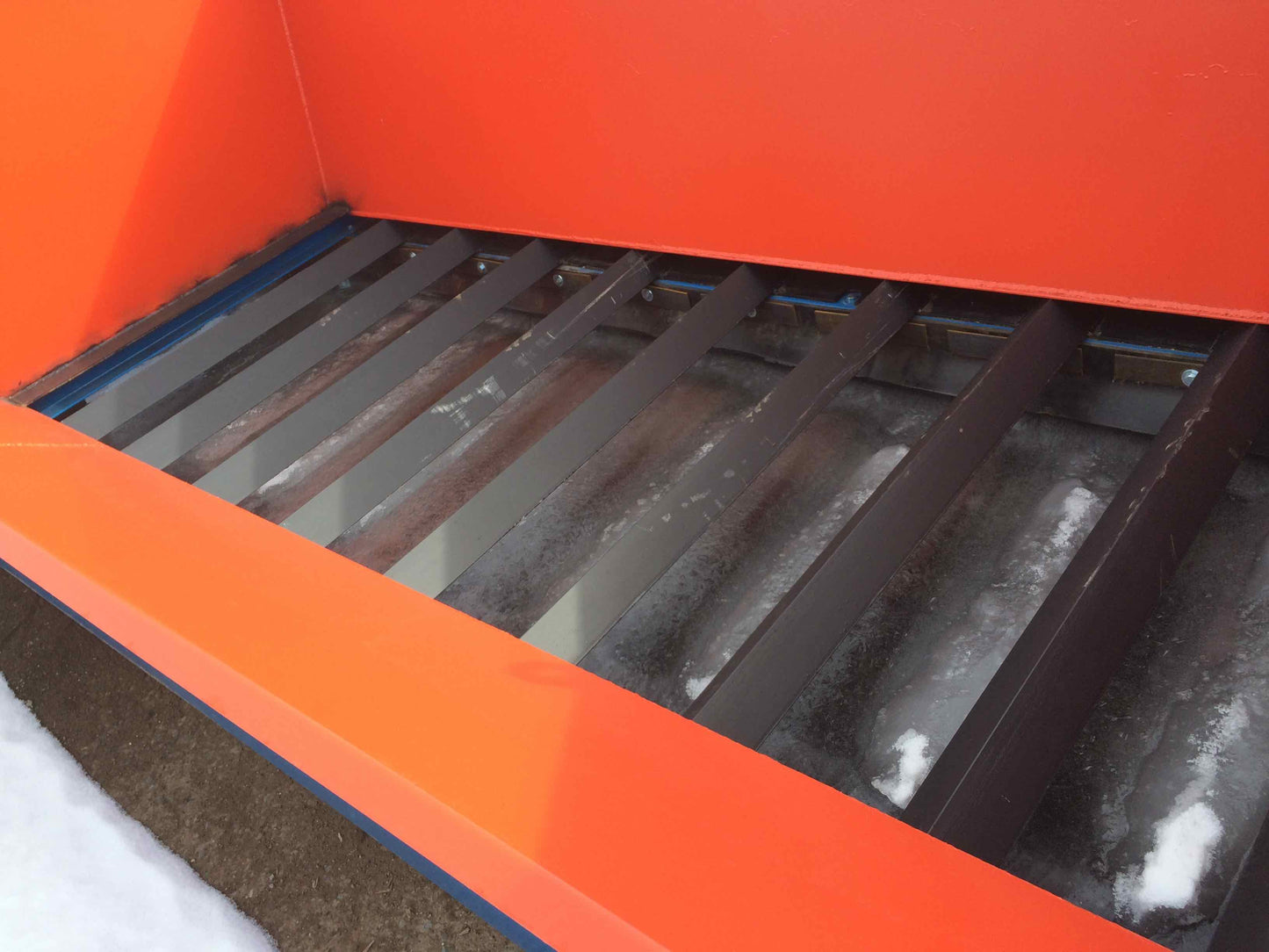

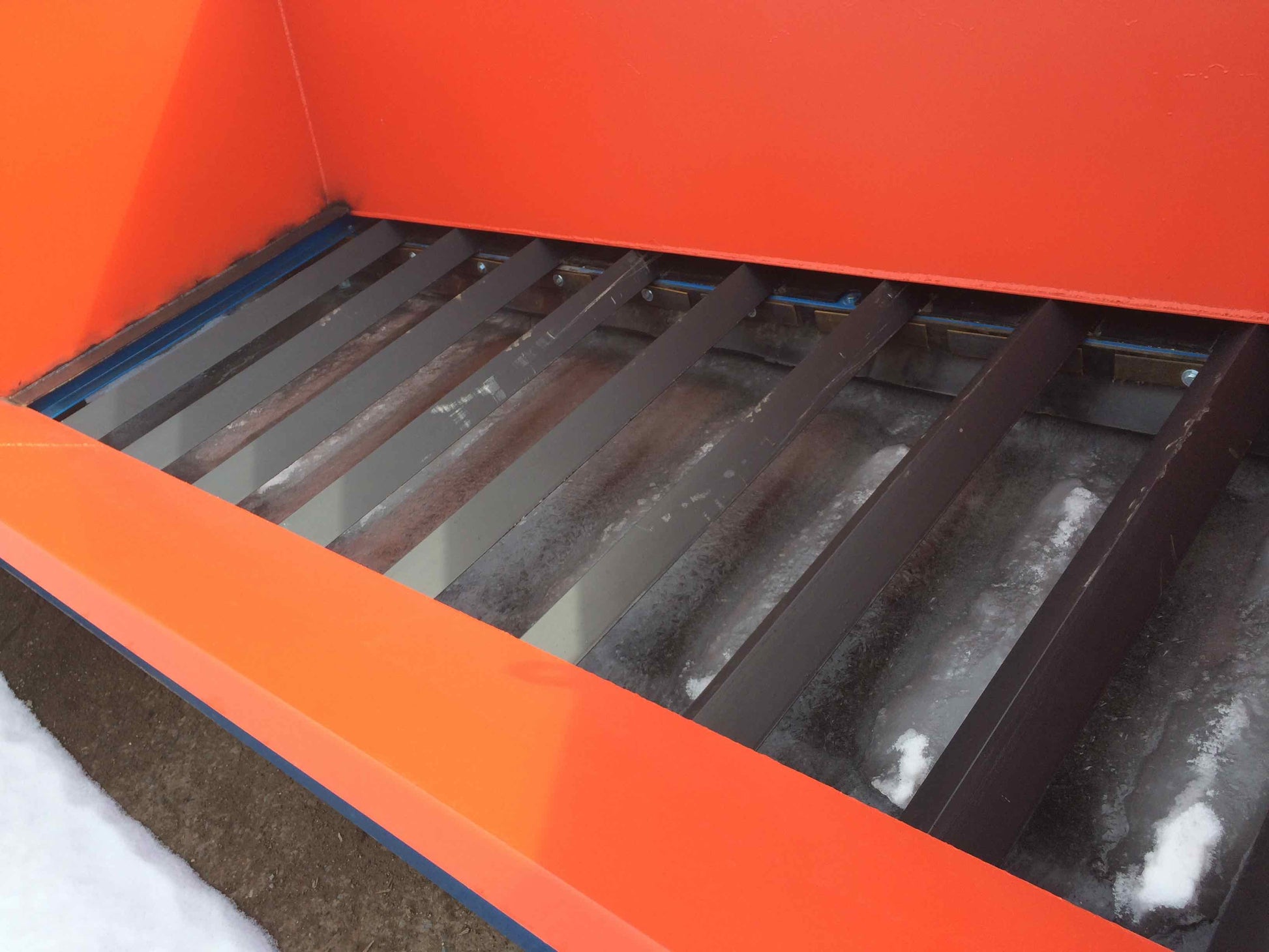

  • Grizzly Grates

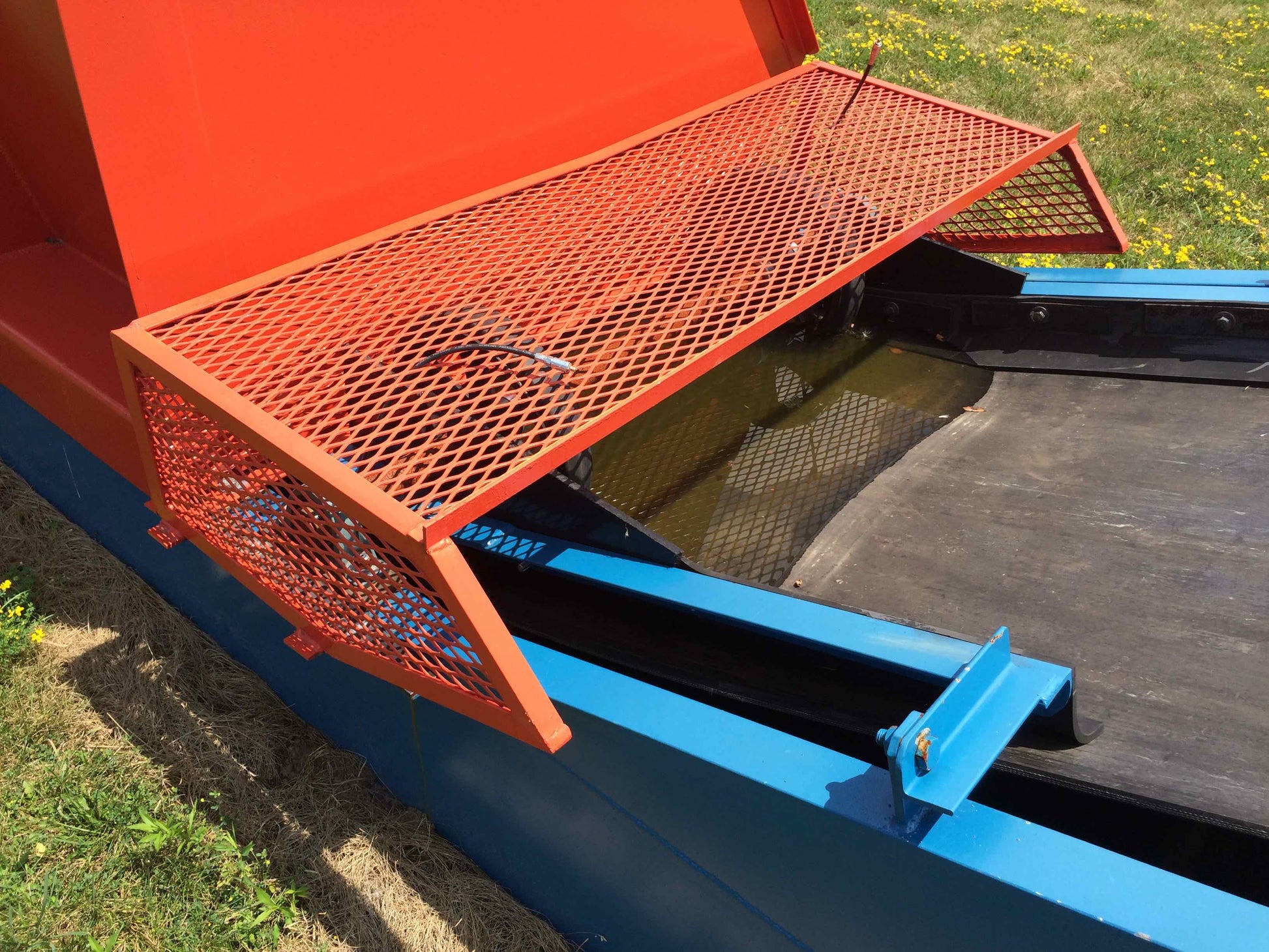

  • Tail Guard and head and tail pinch guards
  • Primed & Painted Tool Steel Gray, Unless Specified Differently
