Radial Stacker, Conveyor system, Iron City Supply

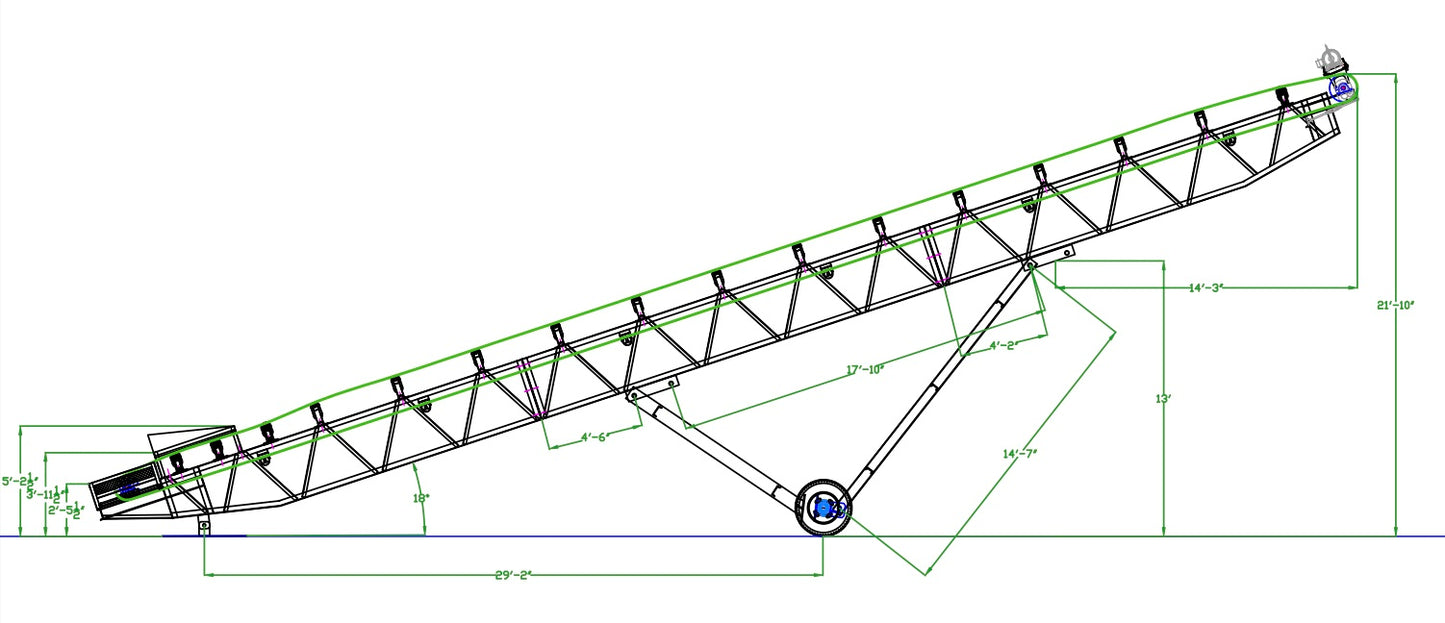

Iron City Supply NEW 42x60 Radial Stacker

Regular price $32,800.00 Sale

Price Starts at $32,800.00

 In stock and usually available to ship within a week.  We build to your specs:  cat walk, covers, power travel, hydraulic raise/lower, hydraulic motor, gas or diesel/hydraulic, belt scrapers, cleated belt, 3 ply belt, stop switches, motor starters are also available.  Call or email for more information 814-701-2111 sales@ironcitysupply.com

Iron City Supply NEW 42x60 Radial Stacker - options pricing available upon request

  • 36” Deep Truss, 3x3x1/4 Cord Angle, 2x2x1/4 Lattice
  • Heavy Duty Undercarriage, 8x8 Tubing Axle, 20” Tires & Rims used
  • Lagged head 16” Dia., 3 7/16” Shaft & Jones Roller Bearing
  • 14” Winged Tail, 3 7/16” Shaft & Jones Roller Bearings w/Screw Take-ups
  • World Wide #6-25 Drive, Motor Mount, Belt Guard
  • North American Electric - 25 hp, TEFC, 1800 RPM, 230/460 volt
  • 5” x 35 deg., CEMA C Top Rollers on 48” Centers
  • 5” Returns w/Brackets, 10’ Centers
  • Belt, Rubber, 3 Ply, 330 PIW, ¼ x 1/16 Cover
  • 48” Load Zone w/Skirt Rubber
  • Pivot Plate, Tow Hook
  • Tail Guard
  • Primed & Painted, Tool Steel Gray, Unless Specified Differently

*Shipping is the responsibility of the customer.  If you need a shipping quote, let us know your delivery zip and we'll get you a flat bed or step deck rate.
