Price Starts at $35,500.00 Usually in stock. Call or email for availability sales@ironcitysupply.com

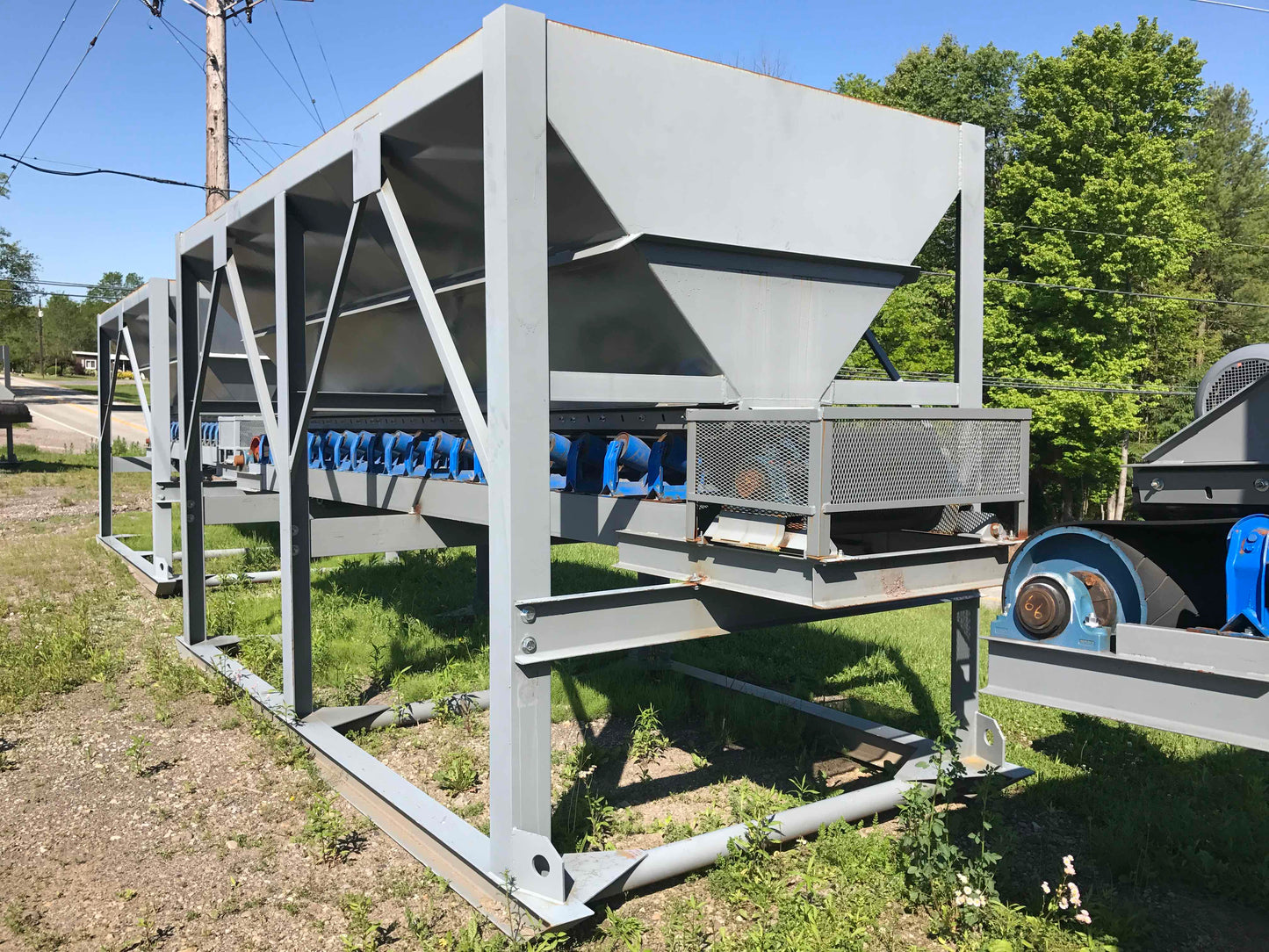

8’ x 16’ HOPPER – 10’-0” High
- 8’ X 16’ FEED BIN, ¼ ” REINFORCED SIDES
- DISCHARGE END “WINGS”
- SKIRT BOARD SEAL FULL LENGTH
- 6 X 6 ANGLE LEGS
- 6 X 6 ANGLE RELIEF
- “I-BEAM” SKID
- PRIMED AND PAINTED TOOL GRAY
Feeder/Belt:
- Lagged Head 16” Dia., 3 7/16” Shaft & Roller Bearings
- Winged Tail 14” Dia., 3 7/16” Shaft & Roller Bearings w/Screw Take-ups
- World Wide #6-25 Drive, Motor Mount, Belt Guard
- 30 hp, TEFC, 1800 RPM, 230/460 volt
- Picking Table Type Rollers on 12” Centers under Bin
- Belt, Rubber, 3 Ply, 330 PIW, 3/16 x 1/16 Cover
- Tail Guard
- Primed & Painted, Tool Steel Gray, Unless Specified Differently
