8'x16' Hopper with 24" Belt Feeder
8'x16' Hopper with 24" Belt Feeder
8'x16' Hopper with 24" Belt Feeder
8'x16' Hopper with 24" Belt Feeder
8'x16' Hopper with 24" Belt Feeder

8'x16' Hopper with 24" Belt Feeder

Regular price $27,900.00 Sale

Usually in stock.  Call or email for availability sales@ironcitysupply.com

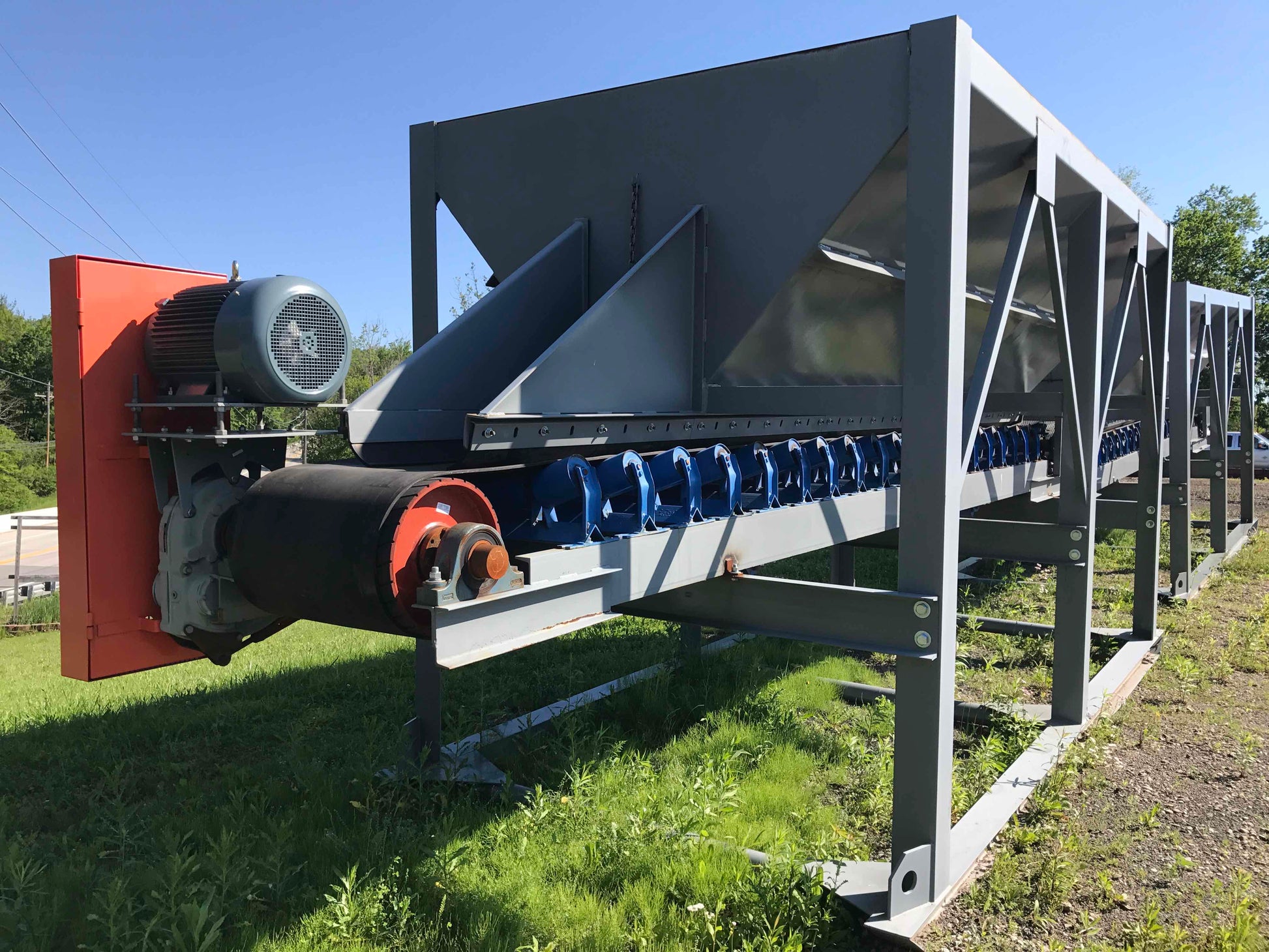

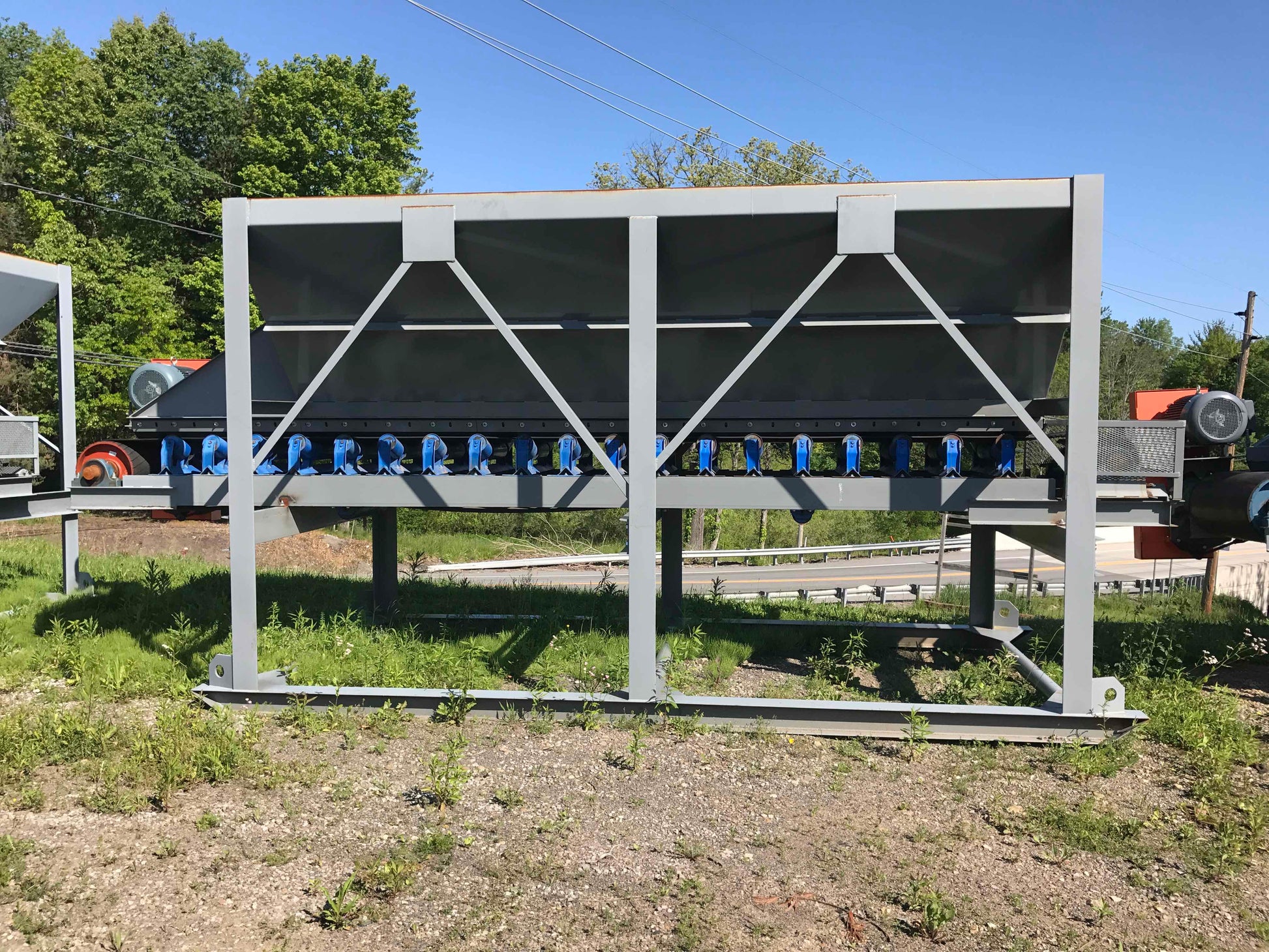

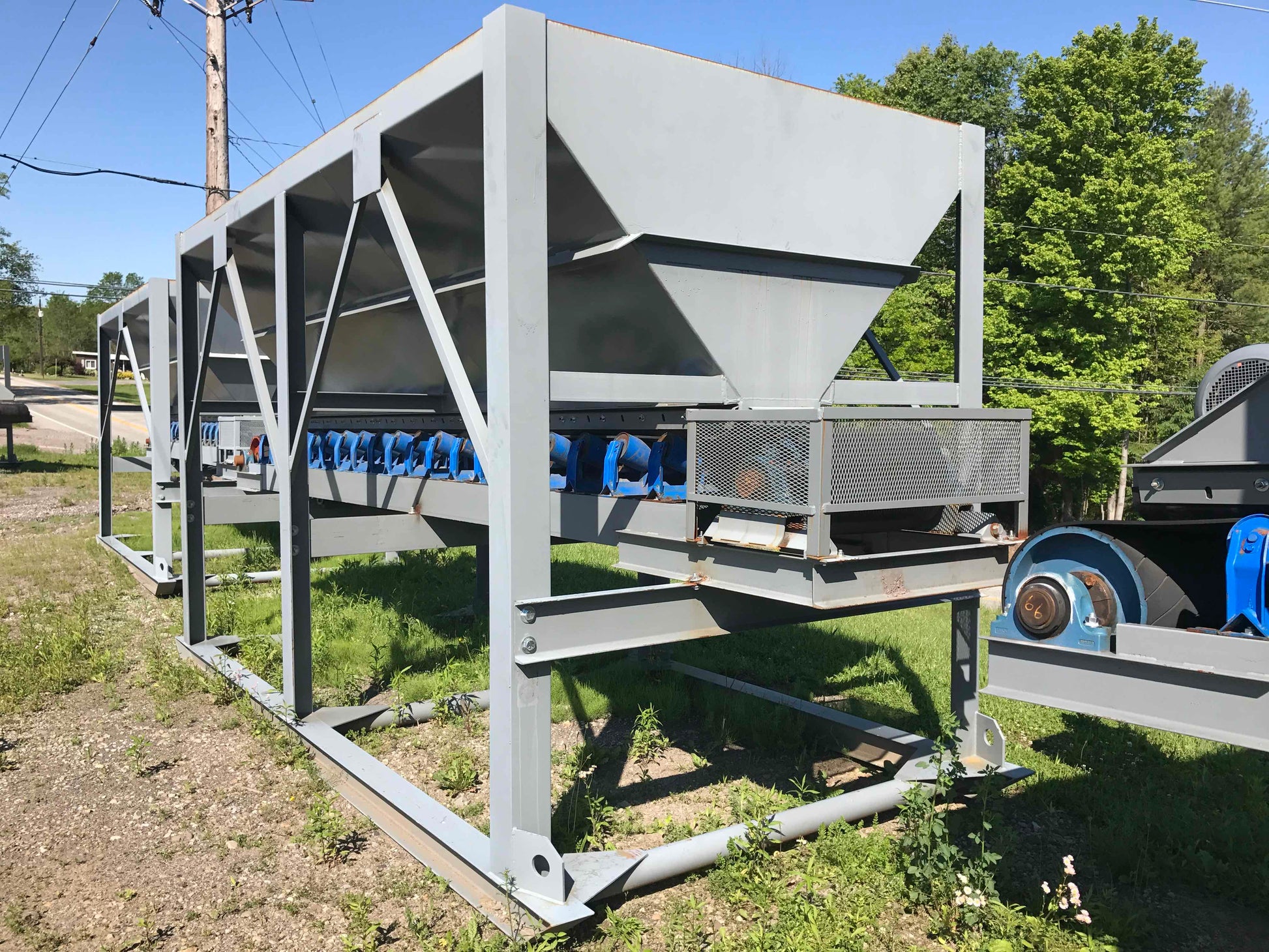

8’ x 16’ HOPPER – 10’-0” High

  • 8’ X 16’ FEED BIN, ¼ ” REINFORCED SIDES
  • DISCHARGE END “WINGS”
  • SKIRT BOARD SEAL FULL LENGTH
  • 6 X 6 ANGLE LEGS
  • 6 X 6 ANGLE RELIEF
  • “I-BEAM” SKID
  • PRIMED AND PAINTED TOOL GRAY

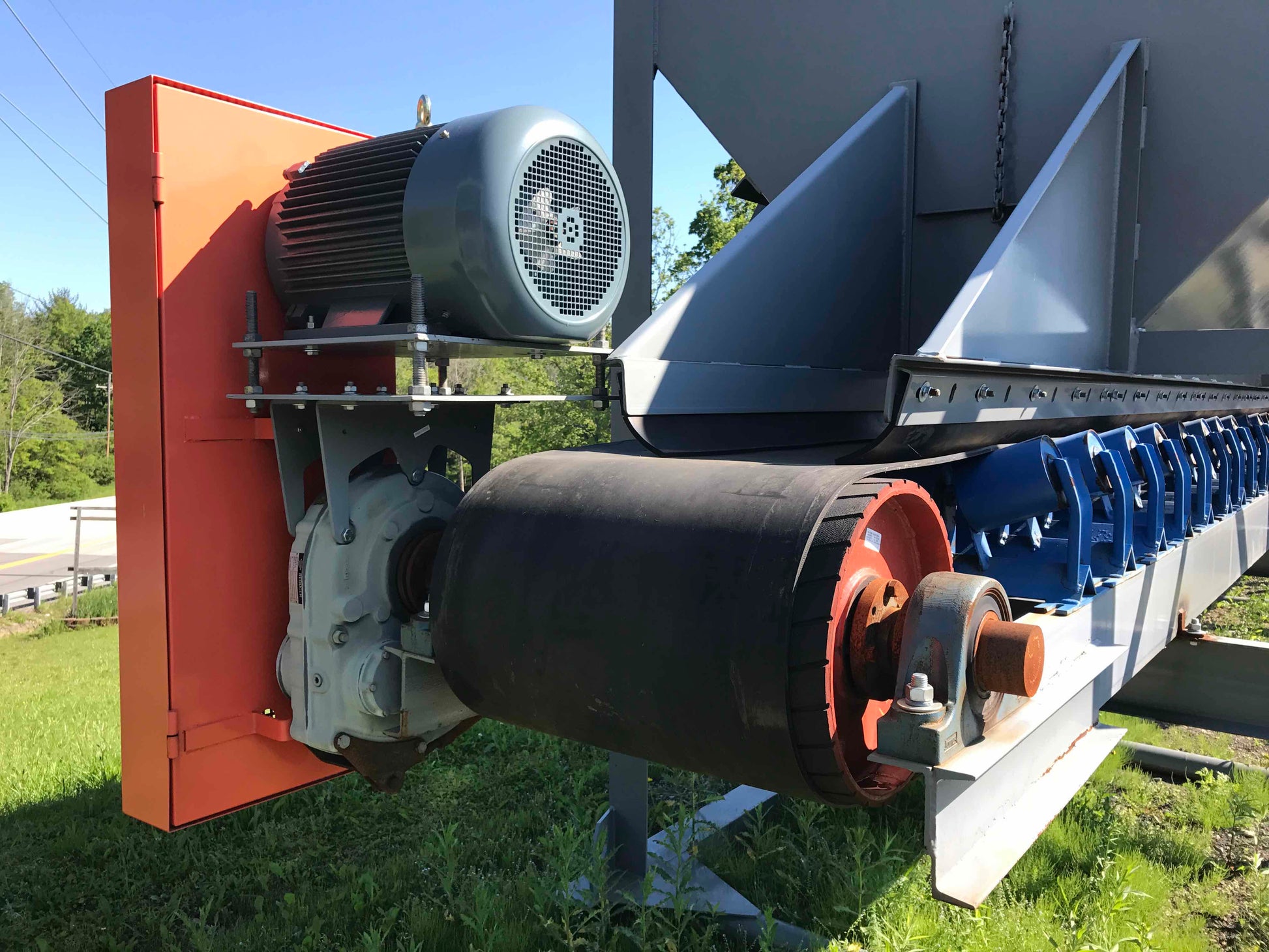

Feeder/Belt:

  • Lagged Head 16” Dia., 3 7/16” Shaft & Roller Bearings
  • Winged Tail 14” Dia., 3 7/16” Shaft & Roller Bearings w/Screw Take-ups
  • World Wide #6-25 Drive, Motor Mount, Belt Guard
  • 30 hp, TEFC, 1800 RPM, 230/460 volt
  • Pioneer Picking Table Type Rollers on 12” Centers under Bin
  • Belt, Rubber, 3 Ply, 330 PIW, 3/16 x 1/16 Cover
  • Tail Guard
  • Primed & Painted, Tool Steel Gray, Unless Specified Differently
