Iron City Supply NEW 48x100 Radial Stacker

Price Starts at $55,700.00

In stock and usually available to ship within a week.  We build to your specs:  cat walk, covers, power travel, hydraulic raise/lower, hydraulic motor, gas or diesel/hydraulic, belt scrapers, cleated belt, 3 ply belt, stop switches, motor starters are also available.  Call or email for more information 814-233-9974 sales@ironcitysupply.com

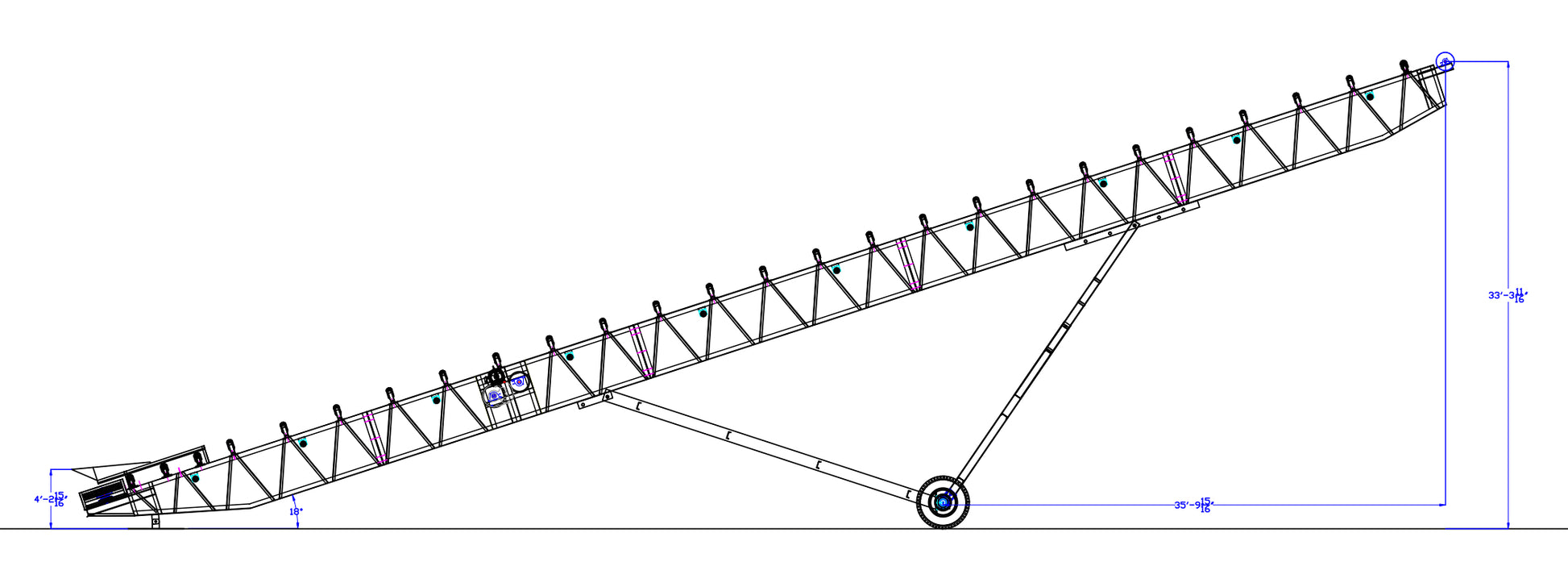

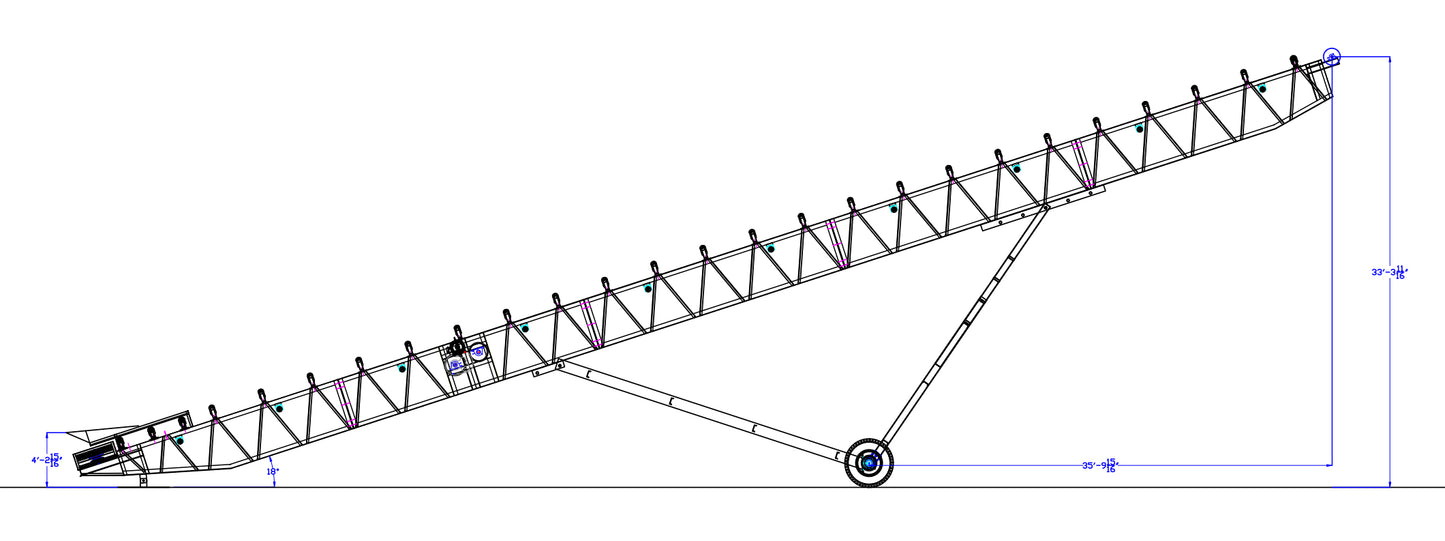

Pit Portable Stacker 48” x 100’ LIGHT DUTY ONLY - Not intended for materials greater than 50 lbs/ft³

• 48” Deep Truss, 3x4x5/16 Cord Angle, 2x2x1/4 Lattice
• Heavy Duty Undercarriage, Heavy Duty Axle, 20” Tires & Rims USED
• Lagged head 18” Dia., 3 7/16” Shaft & Roller Bearings
• Mid Type Wrap Drive – 16” Snub 3 7/16 Shaft & Roller Bearings
• Winged Tail,14”, 3 7/16” Shaft & Roller Bearings w/Screw Take-ups
• World Wide #6 Drive, Mid Wrap type drive
• 30 hp, TEFC, 1800 RPM, 230/460 volt
• 5” x 35 deg., CEMA C Top Rollers on 36” Centers
• 5” Returns w/Brackets, 10’ Centers
• Belt, Rubber, 2 Ply, 220 PIW, 3/16 x 1/16 Cover
• 48” Load Zone w/Skirt Rubber
• Pivot Plate
• Tail Guard
• Primed & Painted, Tool Steel Gray, Unless Specified Differently

*Shipping is the responsibility of the customer.  If you need a shipping quote, let us know your delivery zip and we'll get you a flat bed or step deck rate.
