36"x60' Diesel Hydraulic Radial Stacker

36"x60' Diesel Hydraulic Radial Stacker

Regular price $54,300.00 USD
Regular price Sale price $54,300.00 USD
Sale Sold out

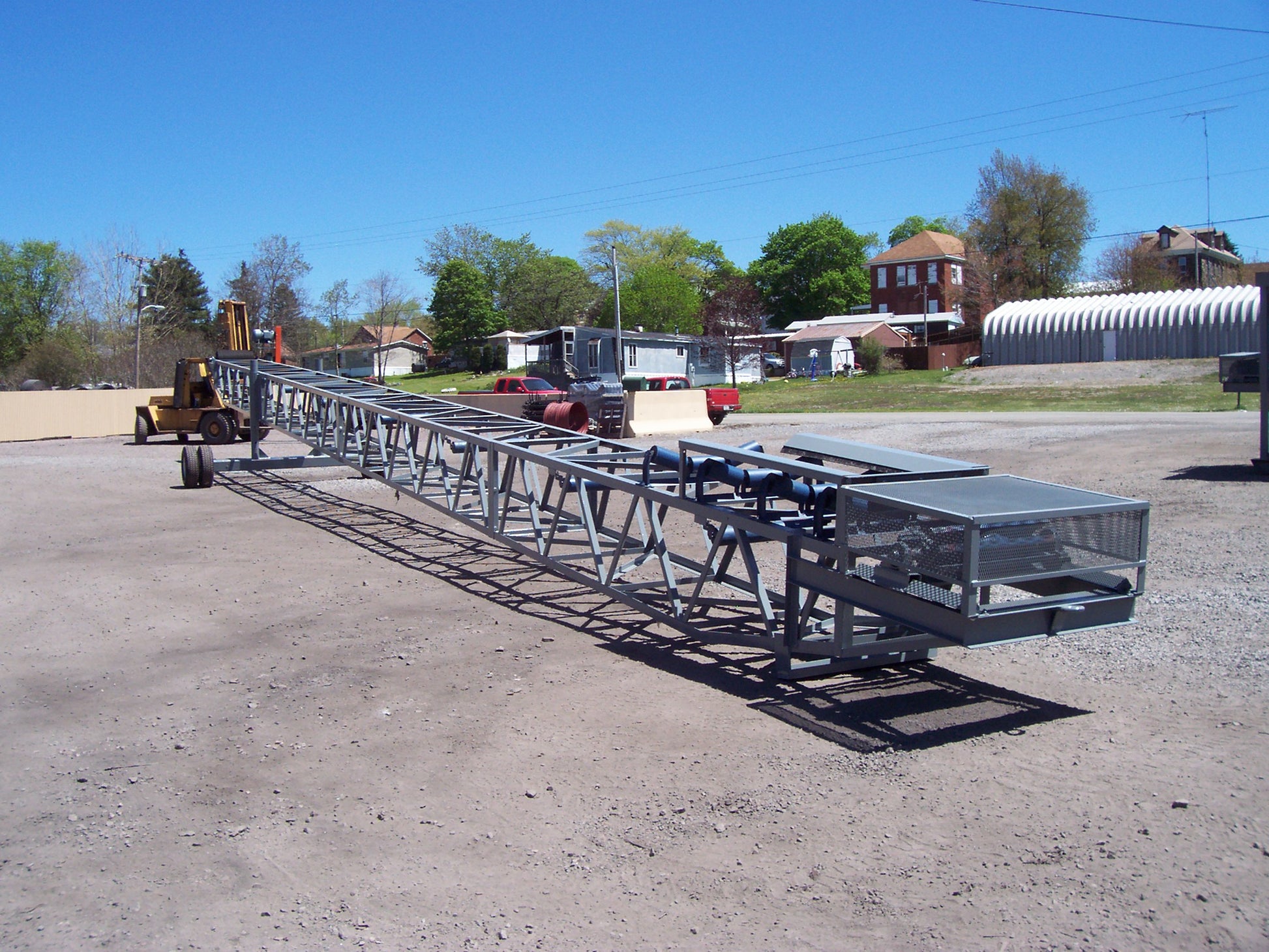

36"x60' Diesel Hydraulic Radial Stacker

Built for performance and durability, this 36"x60' radial stacker is powered by a diesel hydraulic system and engineered for high-capacity material handling. In stock and ready to ship.

Key Features

  • 36" deep truss with 3x3x¼ cord angle and 2x2x¼ lattice
  • Heavy-duty undercarriage with 8x8 tubing axle and 20" tires/rims
  • Lagged head pulley and winged tail pulley with Rexnord roller bearings
  • World Wide hydraulic drive system
  • Diesel hydraulic power unit with electric key start
  • CEMA C top rollers (5" x 35°) on 48" centers
  • 5" return rollers with brackets on 10' centers
  • 3-ply rubber belt (330 PIW, 3/16 x 1/16 cover)
  • 48" load zone with skirt rubber
  • Swivel pivot plate, tow hook, and tail guard
  • Primed and painted Tool Steel Gray (custom colors available)

Diesel Hydraulic Power Unit Specs

  • Perkins 403-11 diesel engine
  • 10 GPM @ 1600 PSI, operating RPM: 2000
  • Electric key start with battery, tray, and cables
  • Skeletonized skid frame
  • Pressure relief valve with gauge
  • Three-way hydraulic supply valve
  • 15-gallon hydraulic tank with fan-cooled hydraulic cooler
  • Hydraulic return filter
  • 5-gallon fuel tank

Pricing

  • Base Price: Starting at $54,300
  • Belt Scraper (Optional): +$970
  • Power Travel (Optional): +$4,320
