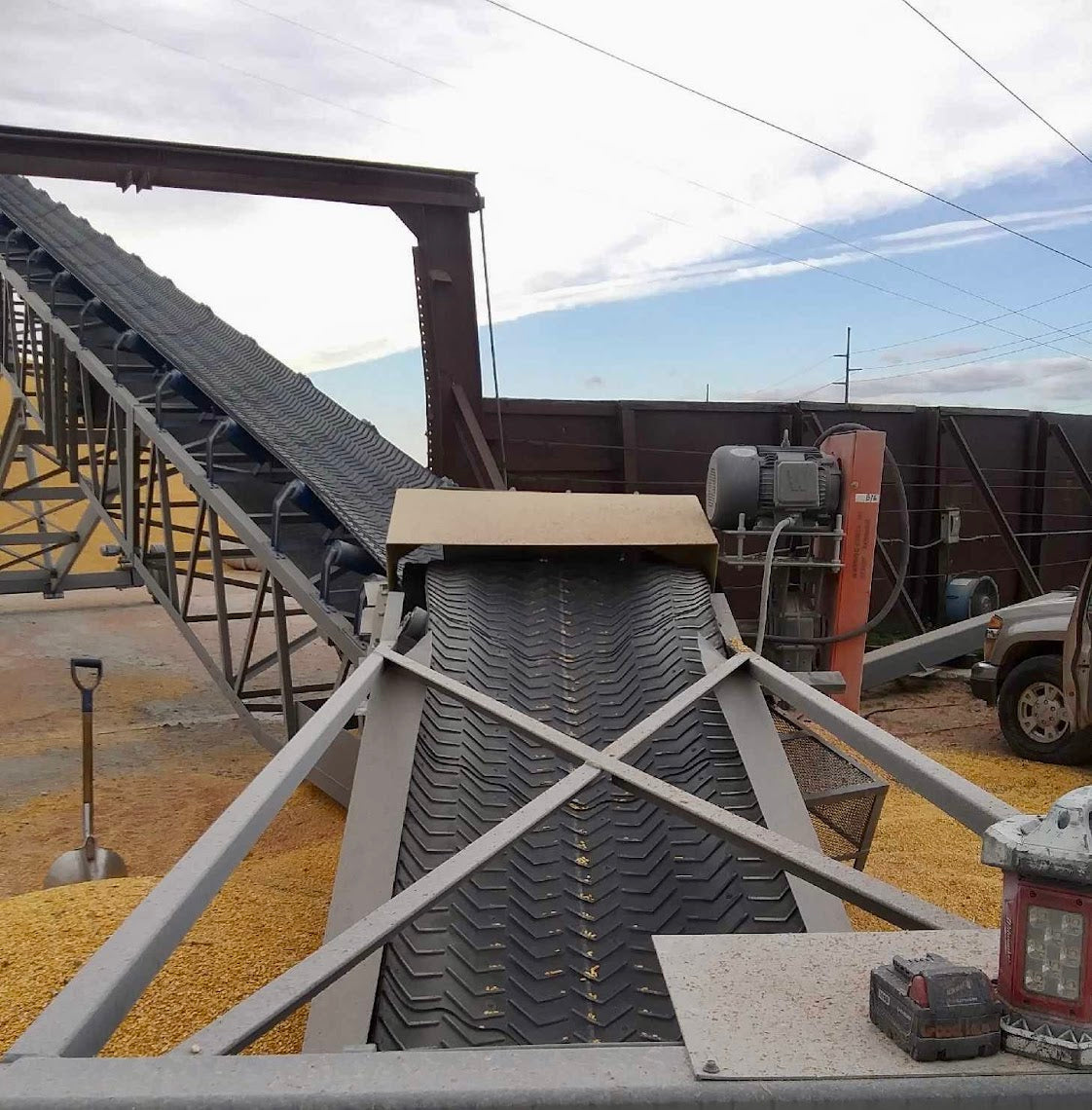

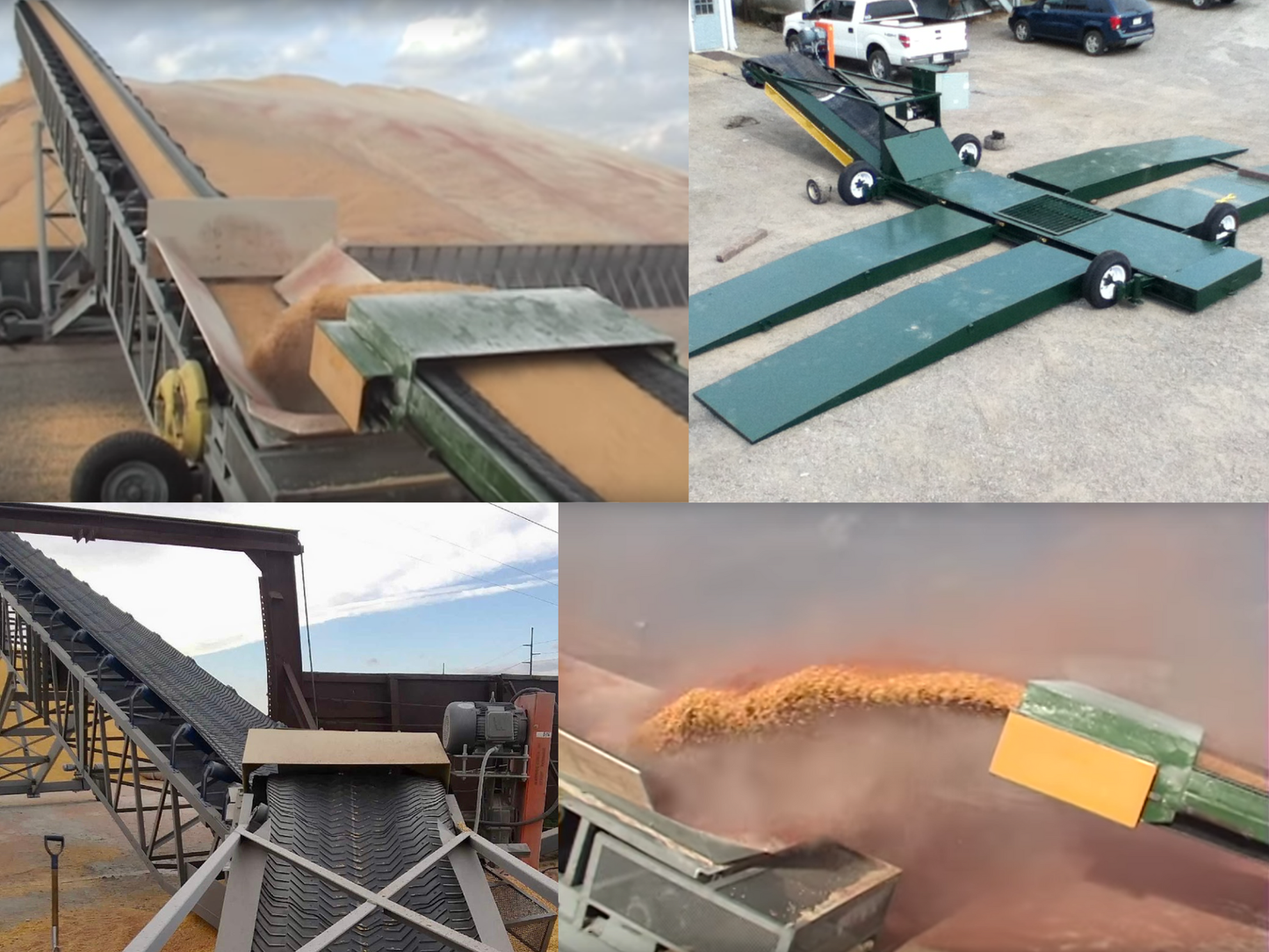

Grain Combo Package: Radial Stacker + Drive-Over Grain Unloader
Complete grain-handling solution designed for fast, efficient bunker filling.
Order as a combo or purchase the stacker and unloader individually. Additionally, upgrade to a 130 ft stacker or choose a double grain unloader configuration. Customizations are also available, just give us a call and we can build you the perfect grain combo for your setup.
Combo Price Starts at: $127,550.00

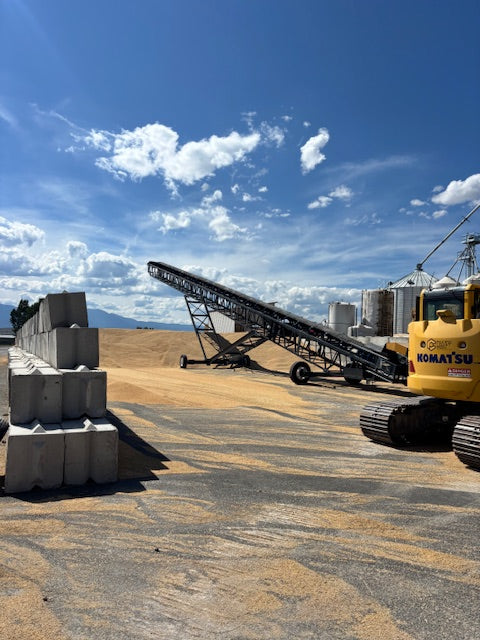

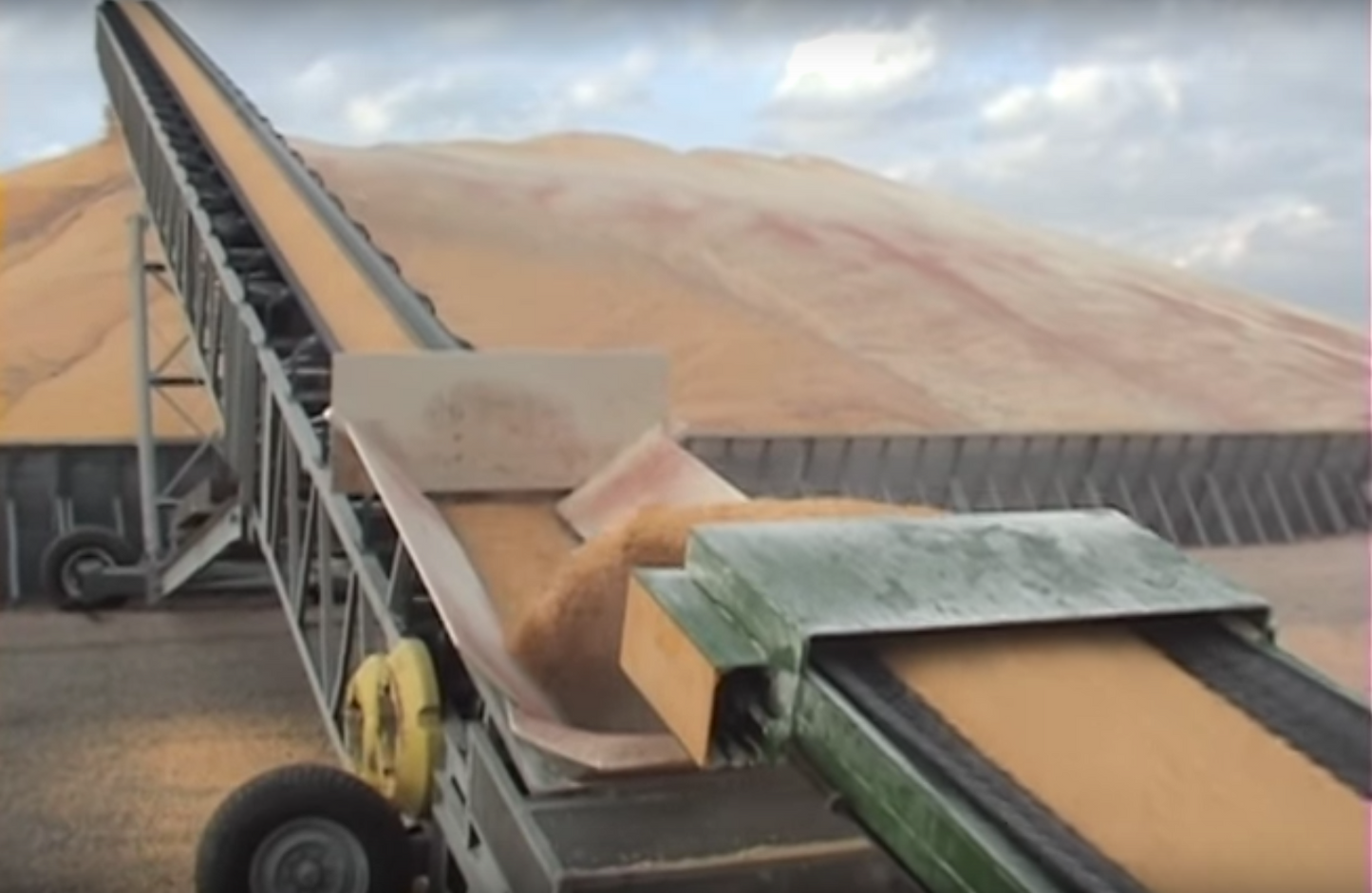

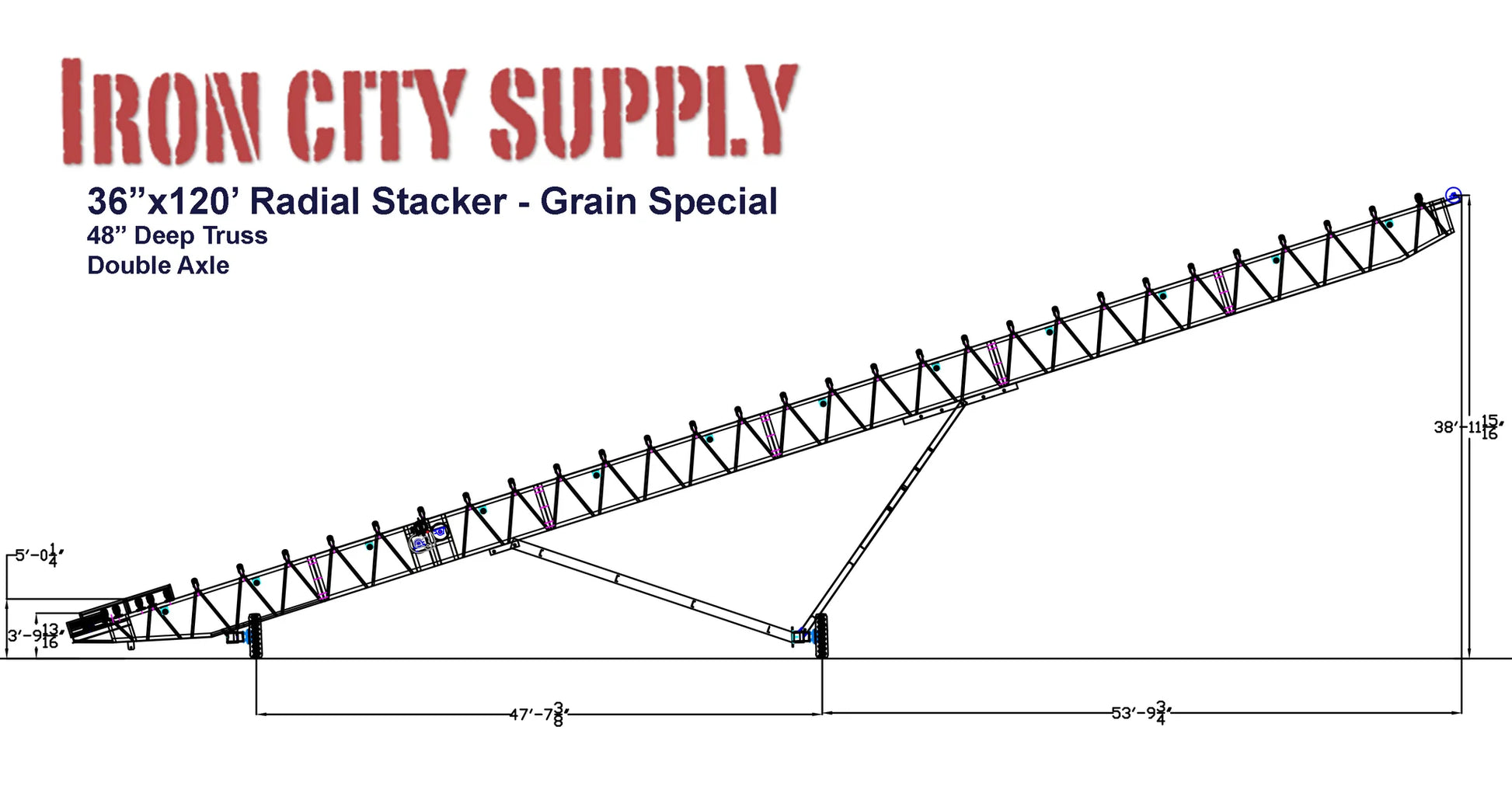

PIT PORTABLE RADIAL STACKER – Light Duty Grain Only – 36” x 120’
Structural & Frame
• 48" deep truss
• 3x4x5/16 cord angle
• 2x2x1/4 lattice
• Low-profile tail (approx. 42")
• Heavy-duty undercarriage with 10x10 tubing axle
• 20" used tires & rims
Drive & Components
• Wrap-type mid drive
• Lagged head pulley, 18" dia., 2‑15/16" shaft with ball bearings
• Winged tail pulley, 2‑15/16" shaft with screw take-ups
• World Wide / WW #6‑09 drive, motor mount, belt guard
• 30 HP TEFC motor, 1800 RPM, 230/460V
Rollers & Belt
• Pioneer 5" x 35° CEMA C top rollers on 48" centers
• Pioneer 5" return rollers with brackets, 10' centers
• 2‑ply, 220 PIW Chevron V‑cleat belt
Additional Features
• 8' receiving hopper with skirt rubber and extended sides
• Pivot plate, tow hook, weight box (weight not included)
• Tail guard
• Primed & painted Tool Steel Gray (custom colors available)

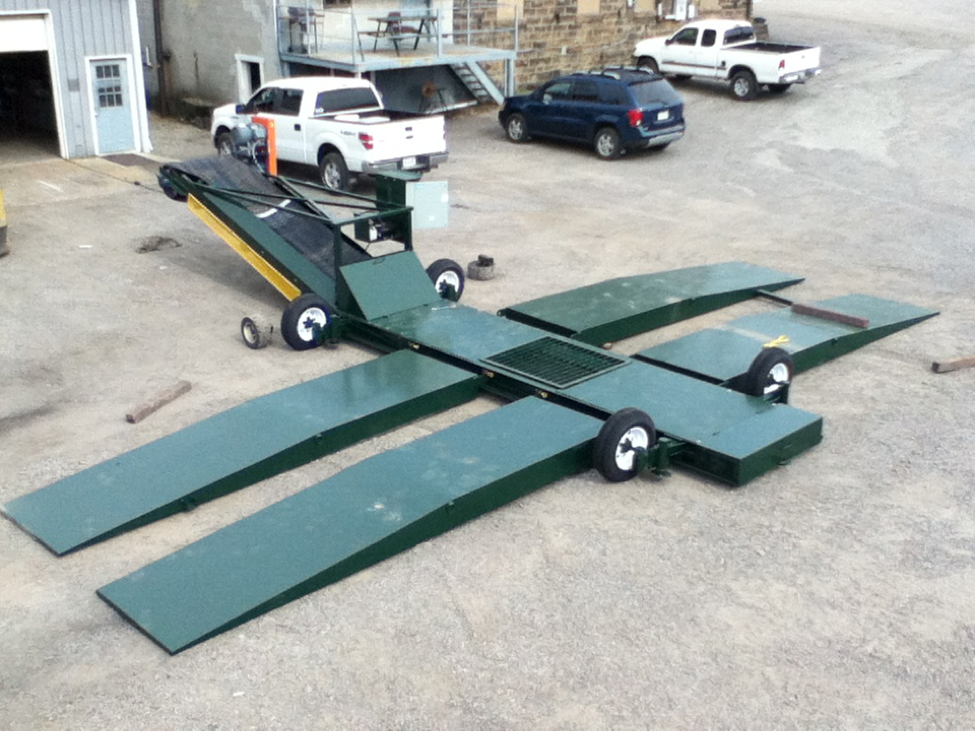

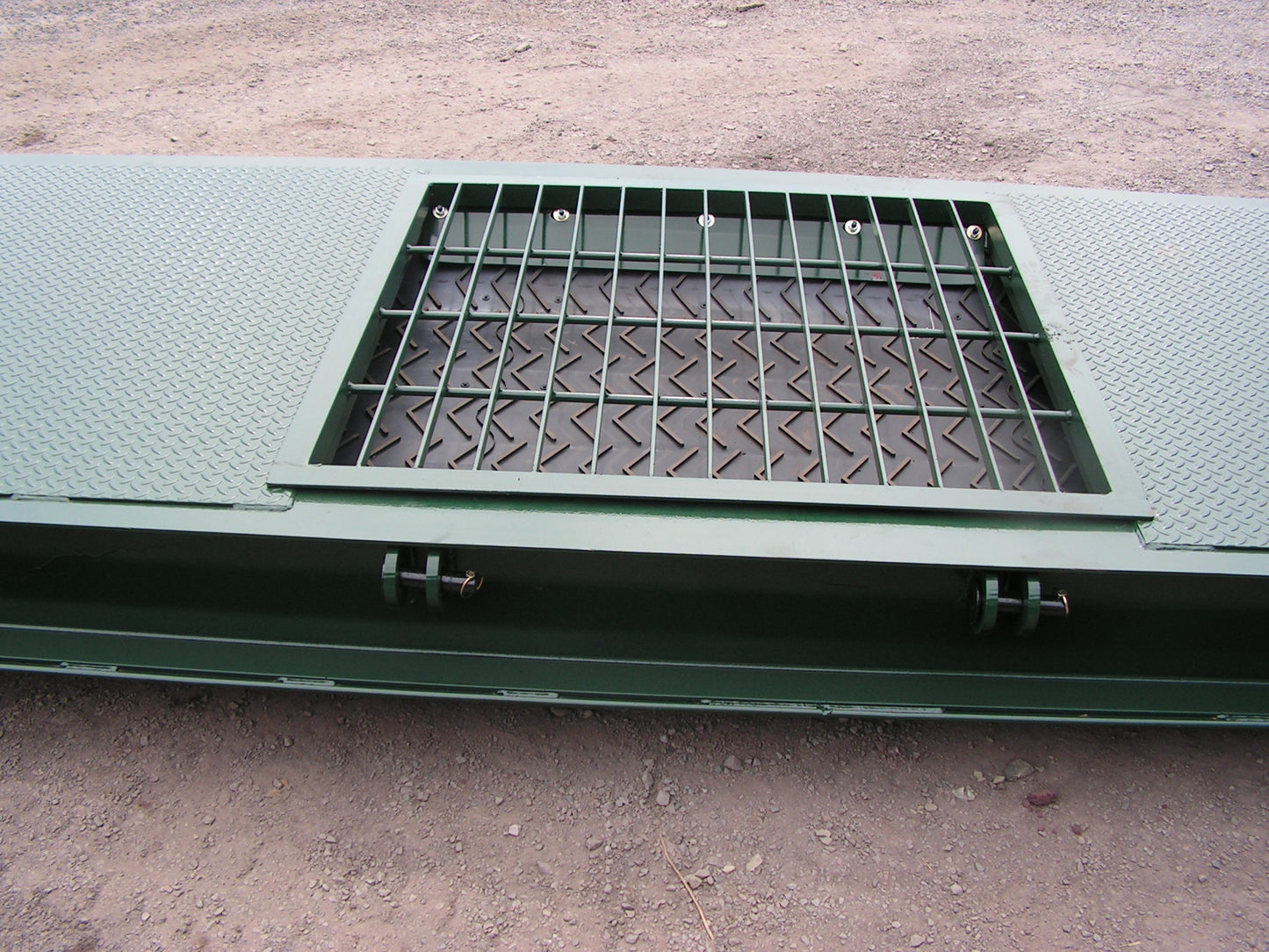

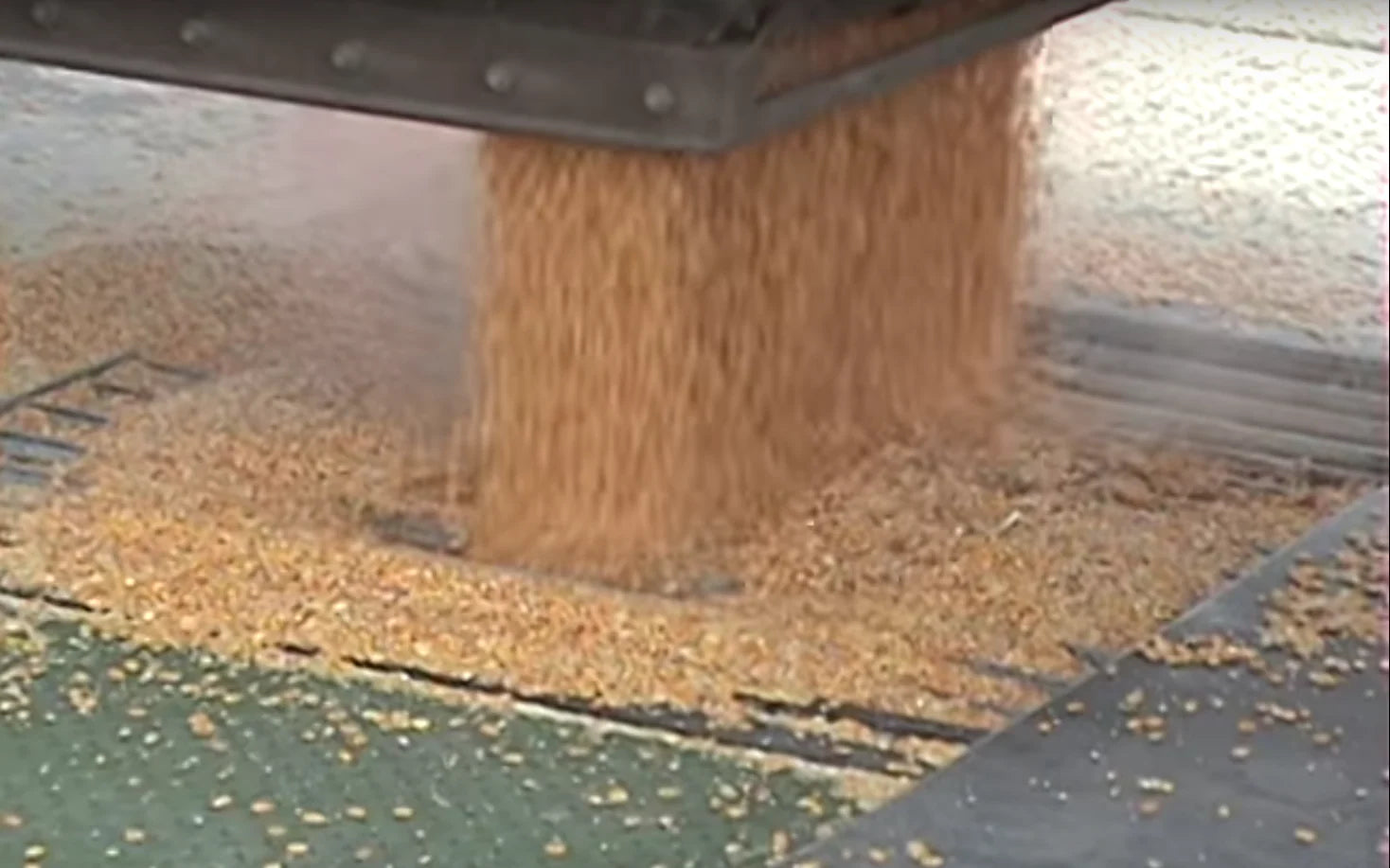

DRIVE-OVER GRAIN UNLOADER
Move grain fast and reduce bottlenecks at your bunker. This unloader delivers 12,000 bushels per hour and pairs perfectly with a 36x120 or 36x130 radial stacker.
Specifications
• Belt Width: 42" Chevron
• Capacity: 12,000 BPH
• Ramps: Four removable 16' ramps
• Motor Starter: Full-voltage motor starter
• Lifting: Hydraulic lift jacks
Custom builds available. We can build to your exact specifications. Options include:
• Catwalk
• Covers
• Power travel
• Hydraulic raise/lower
• Hydraulic motor
• Gas or diesel/hydraulic power
• Belt scrapers
• Cleated or 3‑ply belt
• Stop switches
• Motor starters
