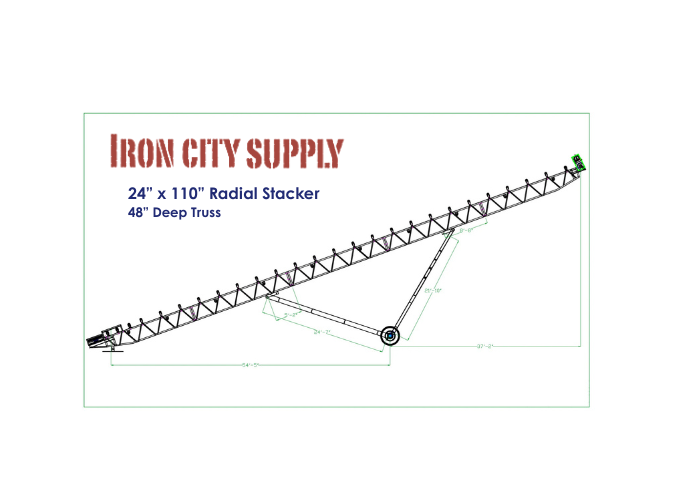

Iron City Supply NEW 24x110 Radial Stacker

RADIAL STACKER
24” x 110’

• 48” Deep Truss, 3x4x5/16 Cord Angle, 2x2x1/4 Lattice
• Heavy Duty Undercarriage, 20” Tires & Rims used
• Lagged head 18” Dia., 3 7/16” Shaft & Roller Bearing
• Mid type wrap drive with snub roller – 2 15/16” Shaft & Roller Bearings
• Winged Tail, 2 15/16” Roller Bearings w/Screw Take-ups
• World Wide #6 Drive, Motor Mount, Belt Guard
• 25 hp, TEFC, 1800 RPM, 230/460 volt
• Pioneer, 5” x 35 deg., CEMA C Top Rollers on 48” Centers
• Pioneer, 5” Returns w/Brackets, 10’ Centers
• Belt, Rubber, 2 Ply, 220 PIW, 3/16 x 1/16 Cover
• 48” Load Zone w/Skirt Rubber
• Pivot Plate
• Tail Guard
• Primed & Painted, Tool Steel Gray, Unless Specified Differently

Price: $45,120.00

Available Add-Ons & Pricing

• Catwalk — Add $5,280.00
• Power Travel — Add $3,600.00
• Back Stop — Add $630.00
• Belt Scraper — Add $940.00
• 25 HP Motor Starter Panel — Add $2,730.00
• 2 HP Power Travel Reversing Motor Starter — Add $1,695.00
• 12” Load Zone Extensions — Add $325.00
• Grease Lines — Add $800.00

Contact us to add these options or configure a fully customized system for your operation.
