Iron City Supply NEW 24x80 Radial Stacker
Price Starts at $26,800.00
Email or call with your specs and we'll get you a custom quote usually within a day.
Cat walk, covers, power travel, hydraulic raise/lower, hydraulic motor, gas or diesel/hydraulic, belt scrapers, cleated belt, 3 ply belt, stop switches, and motor starters are also available.
Build time is typically a week.
Call or email for more information 814-233-9974 firstname.lastname@example.org

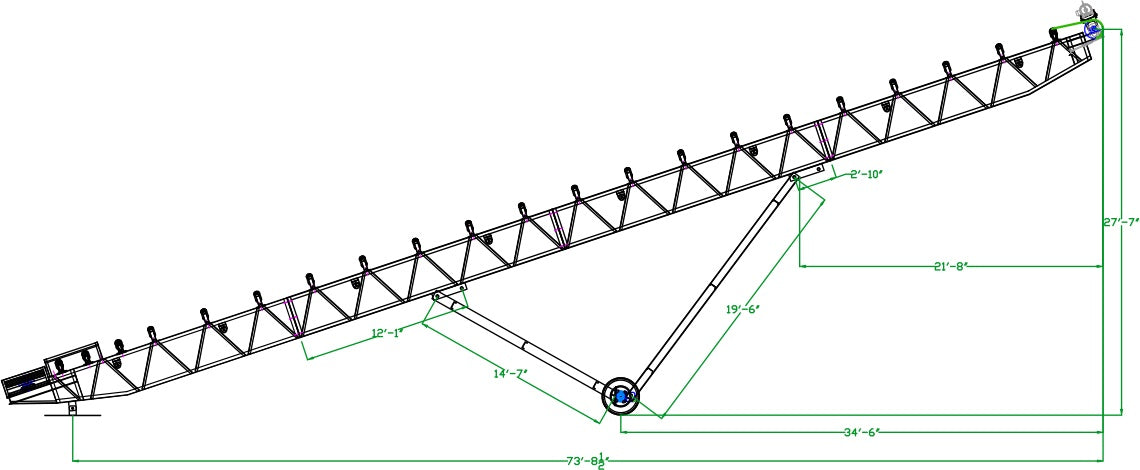

PIT PORTABLE RADIAL STACKER 24” x 80’
- 36” Deep Truss, 3x3x1/4 Cord Angle, 2x2x1/4 Lattice
- Heavy Duty Undercarriage, 8x8 Tubing Axle, 20” Tires & Rims
- Lagged head 16” Dia., 2 7/16” Shaft & Ball Bearing
- Winged Tail, 2 7/16” Shaft & Ball Bearings w/Screw Take-ups
- World Wide #4 Drive, Motor Mount, Belt Guard
- 15 hp, TEFC, 1800 RPM, 230/460 volt
- 5” x 35 deg., CEMA C Top Rollers on 48” Centers
- 5” Returns w/Brackets, 10’ Centers
- Belt, Rubber, 2 Ply, 220 PIW, 3/16 x 1/16 Cover
- 48” Load Zone w/Skirt Rubber
- Pivot Plate, Tow Hook
- Tail Guard
- Primed & Painted, Tool Steel Gray, Unless Specified Differently
*Shipping is the responsibility of the customer. If you need a shipping quote, let us know your delivery zip and we'll get you a flat bed or step deck rate.
