Iron City Supply NEW 30x80 Radial Stacker
Regular price
$30,400.00
Sale
Price Starts at $30,400.00
In stock and usually available to ship within a week. We build to your specs: cat walk, covers, power travel, hydraulic raise/lower, hydraulic motor, gas or diesel/hydraulic, belt scrapers, cleated belt, 3 ply belt, stop switches, motor starters are also available. Call or email for more information 814-701-2111 sales@ironcitysupply.com

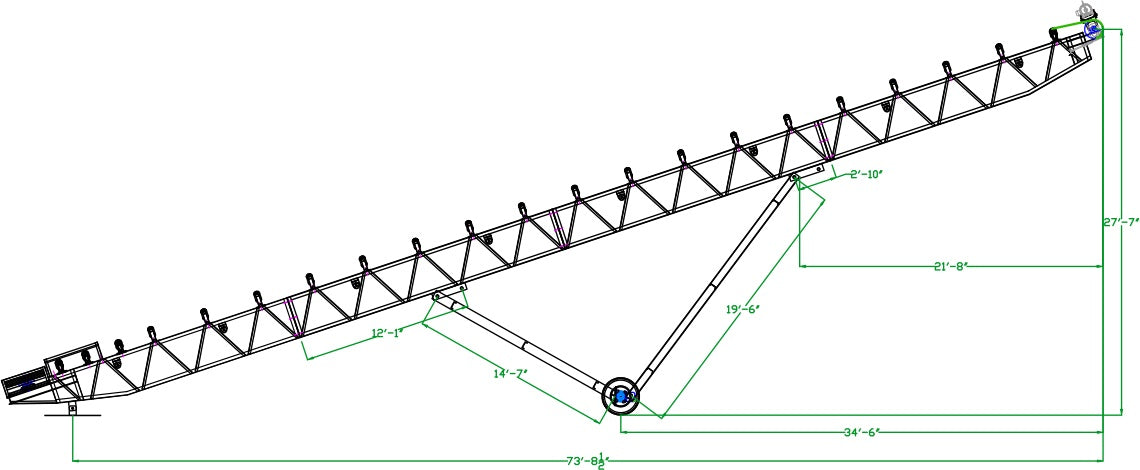

PIT PORTABLE RADIAL STACKER 30” x 80’
- 36” Deep Truss, 3x3x1/4 Cord Angle, 2x2x1/4 Lattice
- Heavy Duty Undercarriage, 8x8 Tubing Axle, 20” Tires & Rims (USED)
- Lagged head 16” Dia., 2 15/16” Shaft & Ball Bearing
- Winged Tail, 2 15/16” Shaft & Ball Bearings w/Screw Take-ups
- World Wide #5 Drive, Motor Mount, Belt Guard
- 20 hp, TEFC, 1800 RPM, 230/460 volt
- Pioneer, 5” x 35 deg., CEMA C Top Rollers on 48” Centers
- Pioneer, 5” Returns w/Brackets, 10’ Centers
- Belt, Rubber, 2 Ply, 220 PIW, 3/16 x 1/16 Cover
- 48” Load Zone w/Skirt Rubber
- Swivel Pivot plate
- Tow Hook
- Tail Guard
- Primed & Painted, Tool Steel Gray, Unless Specified Differently
