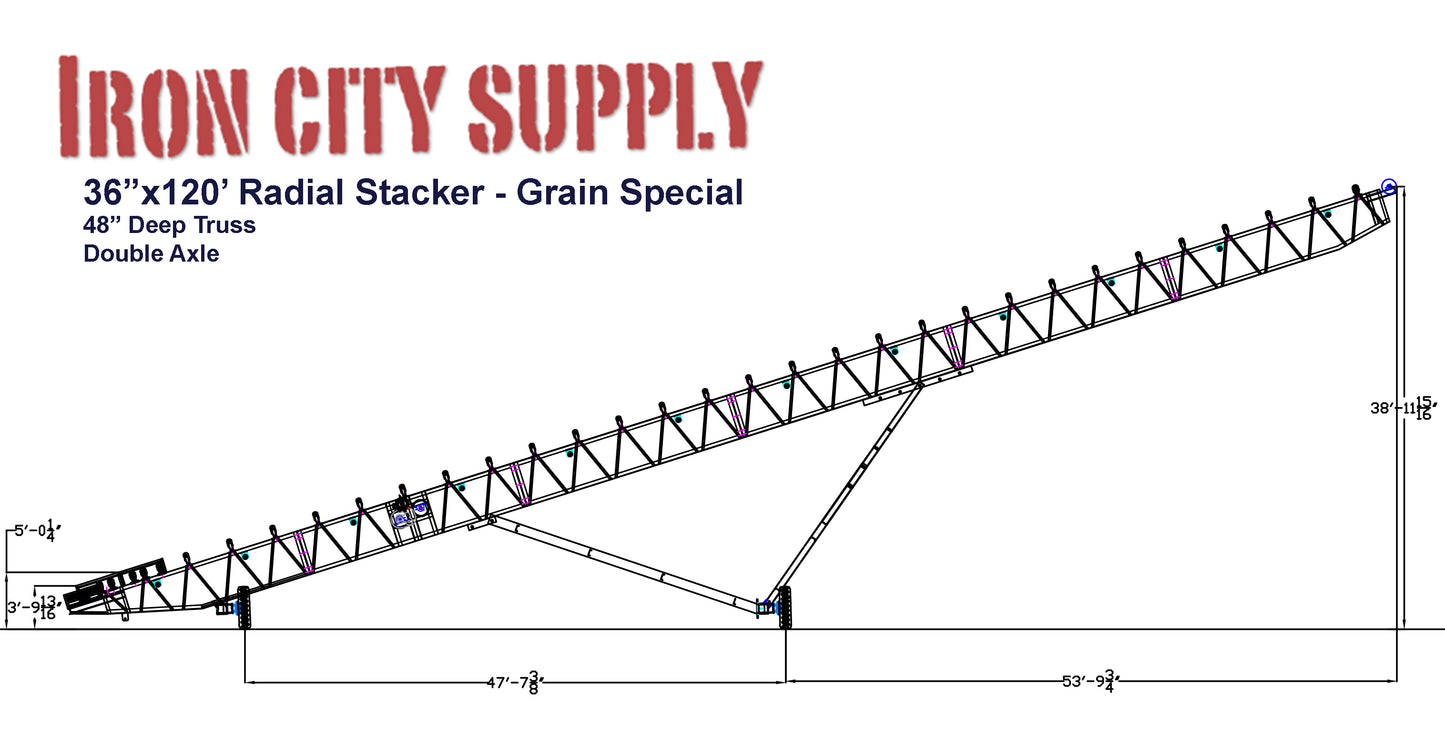

Iron City Supply NEW 36x120 Grain Radial Stacker

Regular price $57,400.00 Sale

Price Starts at $57,400.00

Call for a custom

In stock and usually available to ship within a week.  We also can build to your specs: cat walk, covers, power travel, hydraulic raise/lower, hydraulic motor, gas or diesel/hydraulic, belt scrapers, cleated belt, 3 ply belt, stop switches, motor starters are also available.  Call or email for more information 814-701-2111 sales@ironcitysupply.com


  • 48” Deep Truss, 3x4x5/16 Cord Angle, 2x2x1/4 Lattice
  • Low profile tail, (Approximately 42”)
  • Heavy Duty Undercarriage, 10x10 Tubing Axle, 20” Tires & Rims (USED)
  • Wrap type mid drive
  • Lagged head 18” Dia., 2 15/16” Shaft & Ball Bearing
  • Winged Tail, 2 15/16” Shaft & Ball Bearings w/Screw Take-ups
  • World Wide /WW #6-09 Drive, Motor Mount, Belt Guard
  • 30 hp, TEFC, 1800 RPM, 230/460 volt
  • Pioneer, 5” x 35 deg., CEMA C Top Rollers on 48” Centers
  • Pioneer, 5” Returns w/Brackets, 10’ Centers
  • Belt, 2 Ply, 220 PIW, Chevron V-Cleat
  • 8' Receiving Hopper w Skirt Rubber, extended sides
  • Pivot Plate, Tow Hook, weight box (weight not included)
  • Tail Guard
  • Primed & Painted, Tool Steel Gray, Unless Specified Differently
