Iron City Supply NEW 48x80 Radial Stacker

Iron City Supply NEW 48x80 Radial Stacker

Regular price $32,500.00 Sale

In stock and usually available to ship within a few days.  We build to your specs:  cat walk, covers, power travel, hydraulic raise/lower, hydraulic motor, gas or diesel/hydraulic, belt scrapers, cleated belt, 3 ply belt, stop switches, motor starters are also available.  Call or email for more information 814-701-2111 sales@ironcitysupply.com

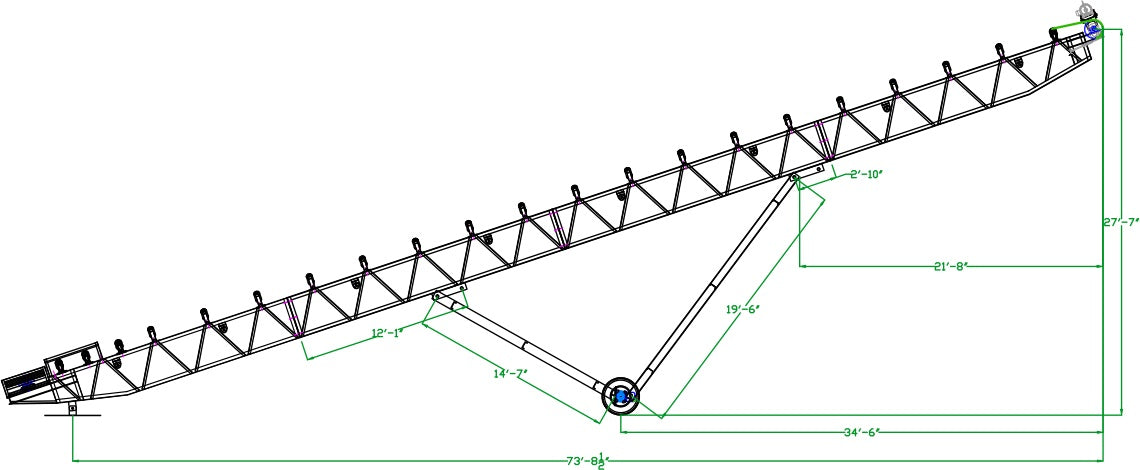

PIT PORTABLE RADIAL STACKER 48” x 80’

STANDARD DUTY

  • 36” Deep Truss, 3x4x5/16 Cord Angle, 2x2x1/4 Lattice
  • Heavy Duty Undercarriage, Heavy Duty Axle, 20” Tires & Rims USED
  • Lagged head 16” Dia., 3 7/16” Shaft & Roller Bearings
  • Winged Tail, 14, 3 7/16” Shaft & Roller Bearings w/Screw Take-ups
  • World Wide, Shaft mount #6 Drive
  • 30 hp, TEFC, 1800 RPM, 230/460 volt
  • Pioneer, 5” x 35 deg., CEMA C Top Rollers on 48” Centers
  • Pioneer, 5” Returns w/Brackets, 10’ Centers
  • Belt, Rubber, 2 Ply, 220 PIW, 3/16 x 1/16 Cover
  • 48” Load Zone w/Skirt Rubber
  • Pivot Plate
  • Tail Guard
  • Primed & Painted, Tool Steel Gray, Unless Specified Differently

 PRICE…………………………………………………………………………..$32,500.00
