Grain Combo Package: Radial Stacker + Drive-Over Grain Unloader

The Fastest Way to Fill Bunkers and Move Grain Efficiently

If you’re looking for a complete grain-handling solution that improves speed, reduces bottlenecks, and maximizes productivity at harvest, our Grain Combo Package delivers everything you need in one system.

This package combines a pit portable radial stacker with a drive-over grain unloader to create a streamlined workflow from truck to bunker. Order the combo together or purchase each unit individually. Upgrade options and custom builds are available to match your operation.

Combo packages start at $122,800.00.

Why Choose a Grain Stacker + Unloader Combo?

During harvest, efficiency matters. Every delay costs time, labor, and fuel. Pairing a radial stacker with a drive-over grain unloader allows you to:

• Move grain faster from trucks to storage
• Reduce handling bottlenecks
• Fill bunkers evenly and efficiently
• Improve jobsite safety and workflow
• Scale your system as your operation grows

This combo is designed for farms, grain operations, and ag businesses that need dependable performance and flexibility.

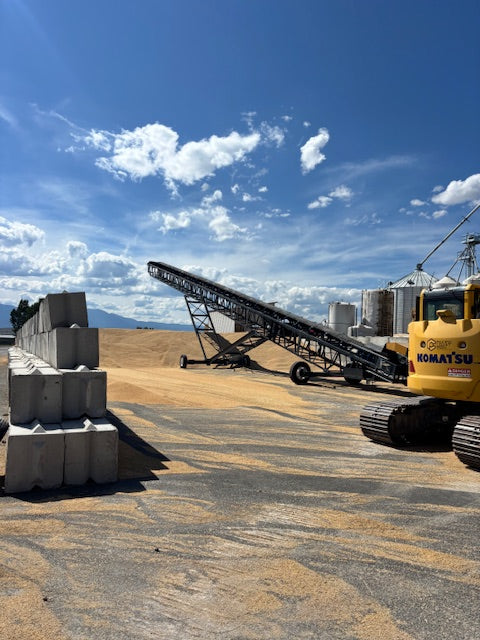

Pit Portable Radial Stacker – 36” x 120’

Light-duty grain handling with durable construction.

Structural & Frame

• 48" deep truss
• 3x4x5/16 cord angle construction
• 2x2x1/4 lattice design
• Low-profile tail (~42")
• Heavy-duty undercarriage with 10x10 tubing axle
• 20" used tires & rims

Drive & Components

• Wrap-type mid drive
• Lagged 18" head pulley with 2-15/16" shaft & ball bearings
• Winged tail pulley with screw take-ups
• World Wide / WW #6-09 drive with motor mount & guard
• 30 HP TEFC motor, 1800 RPM, 230/460V

Rollers & Belt

• Pioneer 5" x 35° CEMA C top rollers (48" centers)
• Pioneer return rollers (10' centers)
• 2-ply, 220 PIW Chevron V-cleat belt

Additional Features

• 8' receiving hopper with skirt rubber & extended sides
• Pivot plate, tow hook, and weight box
• Tail guard
• Primed & painted Tool Steel Gray (custom colors available)

Upgrade option: Move up to a 130-ft radial stacker for extended reach.

Drive-Over Grain Unloader

Move grain fast and eliminate unloading delays. Designed to pair seamlessly with a 36x120 or 36x130 radial stacker.

Specifications

• 42" Chevron belt
• Capacity up to 12,000 bushels per hour
• Four removable 16' ramps
• Full-voltage motor starter
• Hydraulic lift jacks

Configuration option: Choose a double grain unloader for higher-volume operations.

Custom Grain Handling Solutions Built for Your Operation

Every farm and facility is different. We can build your grain combo to match your layout, grain type, and capacity needs.

Available options include:

• Catwalk systems
• Conveyor covers
• Power travel
• Hydraulic raise/lower
• Hydraulic motor packages
• Gas or diesel/hydraulic power
• Belt scrapers
• Cleated or 3-ply belts
• Stop switches
• Motor starters

Increase Harvest Efficiency and Control Grain Flow

A radial stacker paired with a drive-over grain unloader creates a seamless grain-handling system that:

• Speeds up unloading
• Reduces manual handling
• Improves bunker management
• Supports higher harvest volumes

Whether you’re expanding your operation or replacing aging equipment, this combo provides a dependable, long-term solution.
